TRUMPF Side Cord Operation

The side cord operation is the only possible cord operation for TRUMPF track system.

Additional Parts Required:

  1. TRUMPF Track, straight

    • Extruded Aluminium profile EN-AW- 6060 T66

    • Steel pin connection

    • Cut length on request

    1. black anodized
    2. silver anodized

    £27.35 / rm

    £32.82 incl. 20% VAT

  2. TRUMPF Track straight, predrilled

    • Technical details: see Track, Straight

    • Predrilled holes in top of track in 20 cm increments

    1. black anodized
    2. silver anodized

    £38.32 / rm

    £45.98 incl. 20% VAT

  3. TRUMPF Track, curved - with Splice

    • Technical details: see Track, Straight

    • 1/4 circle, 90° curve

    • Radius min. 30 cm

    1. black anodized
    2. silver anodized

    from£91.15 / pc.

    £109.38 incl. 20% VAT

  4. TRUMPF Track, curved - with Splice, predrilled

    • Technical details: see Track, Straight

    • Predrilled holes in top of track in 20 cm increments

    • 1/4 circle, 90° curve

    • Radius min. 30 cm

    1. black anodized
    2. silver anodized

    from£104.87 / pc.

    £125.84 incl. 20% VAT

  5. TRUMPF Universal Track Splice

    • Connects two track sections

    • Including 1 roll pin for flush connection

    • With central through hole for countersunk screw M6 for optional mounting to substructure

    1. black
    2. silver

    from£34.51 / pc.

    £41.41 incl. 20% VAT

  6. TRUMPF End Stop

    • With screw

    £7.79 / pc.

    £9.35 incl. 20% VAT

  7. TRUMPF Universal Ceiling Mounting Plate

    • With central through hole for countersunk screw M6 for mounting to substructure

    • Centre mark for easy positioning with or crosswise to the track run

    • Without fasteners towards substructure

    1. black
    2. silver

    from£20.97 / pc.

    £25.16 incl. 20% VAT

  8. STUDIO/TRUMPF G3-Silence 2-Wheel Runner

    • Polymer body with rubber bumps to reduce stowage noise

    • Ball raced wheel with high-performance plastics tire for minimized noise emission

    • Curtain mounting on 360°-plastics-swivel plus lateral receivers for curtain hooks

    • Required every 20 cm as standard

    1. white
    2. black

    £11.50 / pc.

    £13.80 incl. 20% VAT

  9. TRUMPF Master Runner with Cord Attachment Bracket

    • 4 Trag- und 4 Stützrollen, kugelgelagert

    • Gummiringe zur Aufpralldämpfung

    • Tragfähigkeit gilt nicht für Überzugbügel

    £59.29 / pc.

    £71.15 incl. 20% VAT

  10. TRUMPF Master Runner with Cord Attachment Bracket and Overlap Arm

    • 4 Trag- und 4 Stützrollen, kugelgelagert

    • Gummiringe zur Aufpralldämpfung

    • Tragfähigkeit gilt nicht für Überzugbügel

    £91.15 / pc.

    £109.38 incl. 20% VAT

  11. TRUMPF Single Return Pulley

    • Returns operating rope at the end of the track

    • Ball bearing

    • For rope up to Ø 8 mm

    £43.72 / pc.

    £52.46 incl. 20% VAT

  12. TRUMPF Head Pulley

    • Diverts operating rope to floor

    • For single and double track systems

    • Ball bearing

    • For rope up to Ø 8 mm

    £95.75 / pc.

    £114.90 incl. 20% VAT

  13. TRUMPF Tensioned Return Pulley

    • Adjustable rope tensioning

    • Can replace return pulley

    • Tension distance: 150 mm

    • Ball bearing

    £75.66 / pc.

    £90.79 incl. 20% VAT

  14. TRUMPF Rope Guide Pulley

    • No sag of the returning rope

    • Ball bearing

    • For rope up to Ø 8

    £46.46 / pc.

    £55.75 incl. 20% VAT

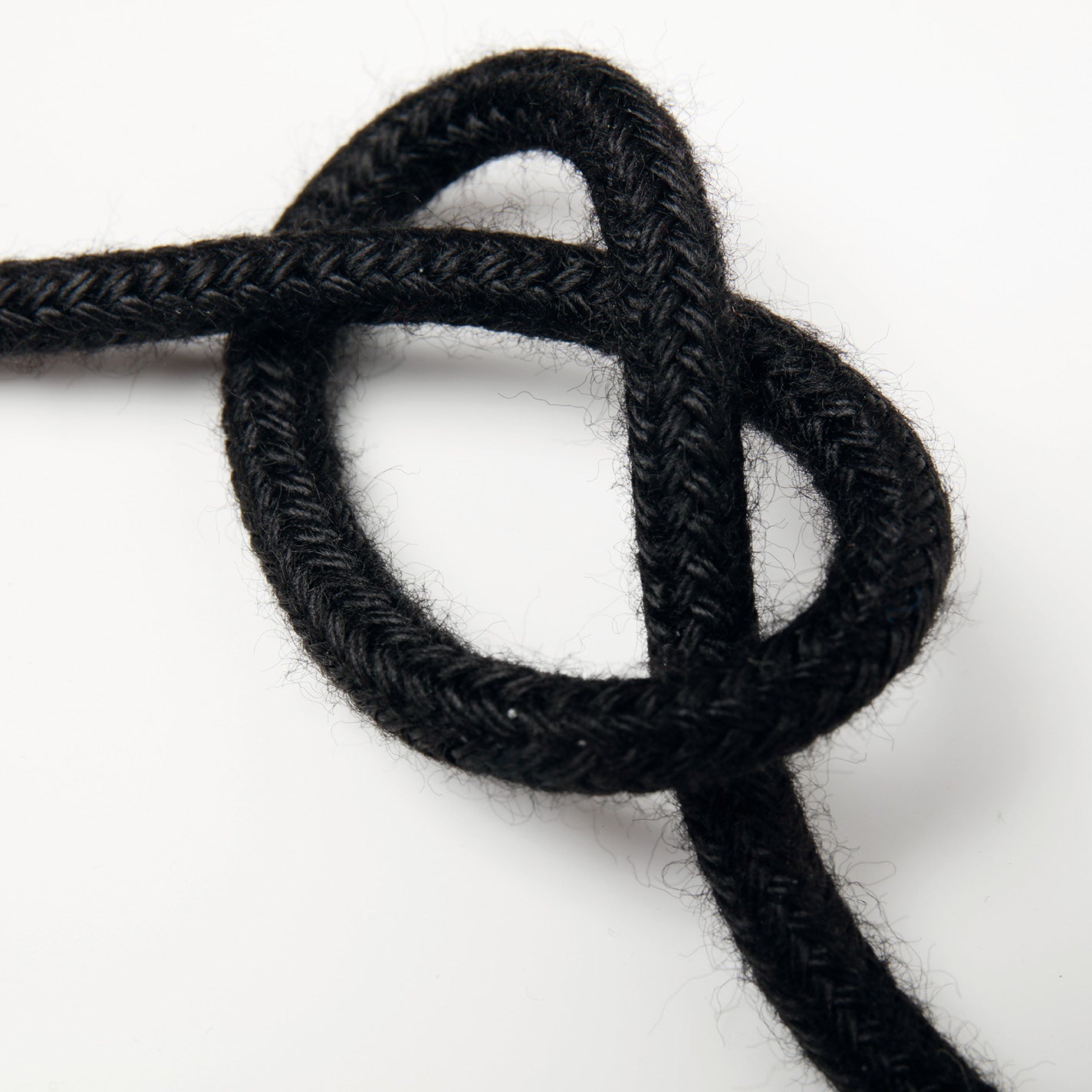

  15. Polyester Pull Rope

    100 % polyester,

    black, Ø 8,00 mm,

    tensile strength approx. 1.150 daN.

    £2.48 / rm

    £2.98 incl. 20% VAT
