TRAC-DRIVE Components for TRUMPF 95

12 Products

  1. Polyester Pull Rope

    100 % polyester,

    black, Ø 8,00 mm,

    tensile strength approx. 1.150 daN.

    1. black
    €2.80 / rm
    €3.33incl. 19% VAT

  2. TRUMPF 95 TRAC-DRIVE Motor TD20

    • Curtain mountings on lateral receivers allow to hide the drive completely with the lateral end of the curtain

    • Easy control via TD20 wall switch (Art.-No. 2380001001) or dry contacts

    • Power supply 230 V / 1,8 A

    1. black
    €2,513.20 / pc.
    €2,990.71incl. 19% VAT

  3. TRAC-DRIVE TD12

    • 2-grooved pulley, direct cabling

    • 40 % duty cycle

    • 3 x 230 / 400 VAC - other voltages available

    €3,162.10 / pc.
    €3,762.90incl. 19% VAT

  4. TRAC-DRIVE TD30

    • 3 grooved pulleys, direct cabling

    • 40 % duty cycle

    • 3 x 230 / 400 VAC - other voltages available


    €3,883.10 / pc.
    €4,620.89incl. 19% VAT

  5. TRUMPF 95 TRAC-DRIVE Mounting Bracket

    • For direct track mounting

    • For TD12 and TD30

    1. black
    €52.50 / pc.
    €62.48incl. 19% VAT

  6. TRAC-DRIVE Precabling of motor with 2 limit switches

    • Preparation for motor connections / limit switch 2 pieces on terminal strip

    • XRL connection for limit switch cable

    • for drive with fixed speed

    • Recommended for on-site control

    €391.40 / pc.
    €465.77incl. 19% VAT

  7. TRAC-DRIVE Precabling of motor for 4 limit switches

    • Preparation for motor connections / limit switch 4 pieces on terminal strip

    • XRL connection for limit switch cable

    • for drive with fixed speed

    • Recommended for on-site control

    €448.10 / pc.
    €533.24incl. 19% VAT

  8. TRUMPF 95 Limit Switch, Track Mounted

    • With track mounting plate

    • Camlock nut included

    • Without cable

    1. black
    €67.00 / pc.
    €79.73incl. 19% VAT

  9. TRUMPF 95 Limit Switch Plate with Pulley

    • With track mounting plate

    • Without cable

    1. black
    €91.70 / pc.
    €109.12incl. 19% VAT

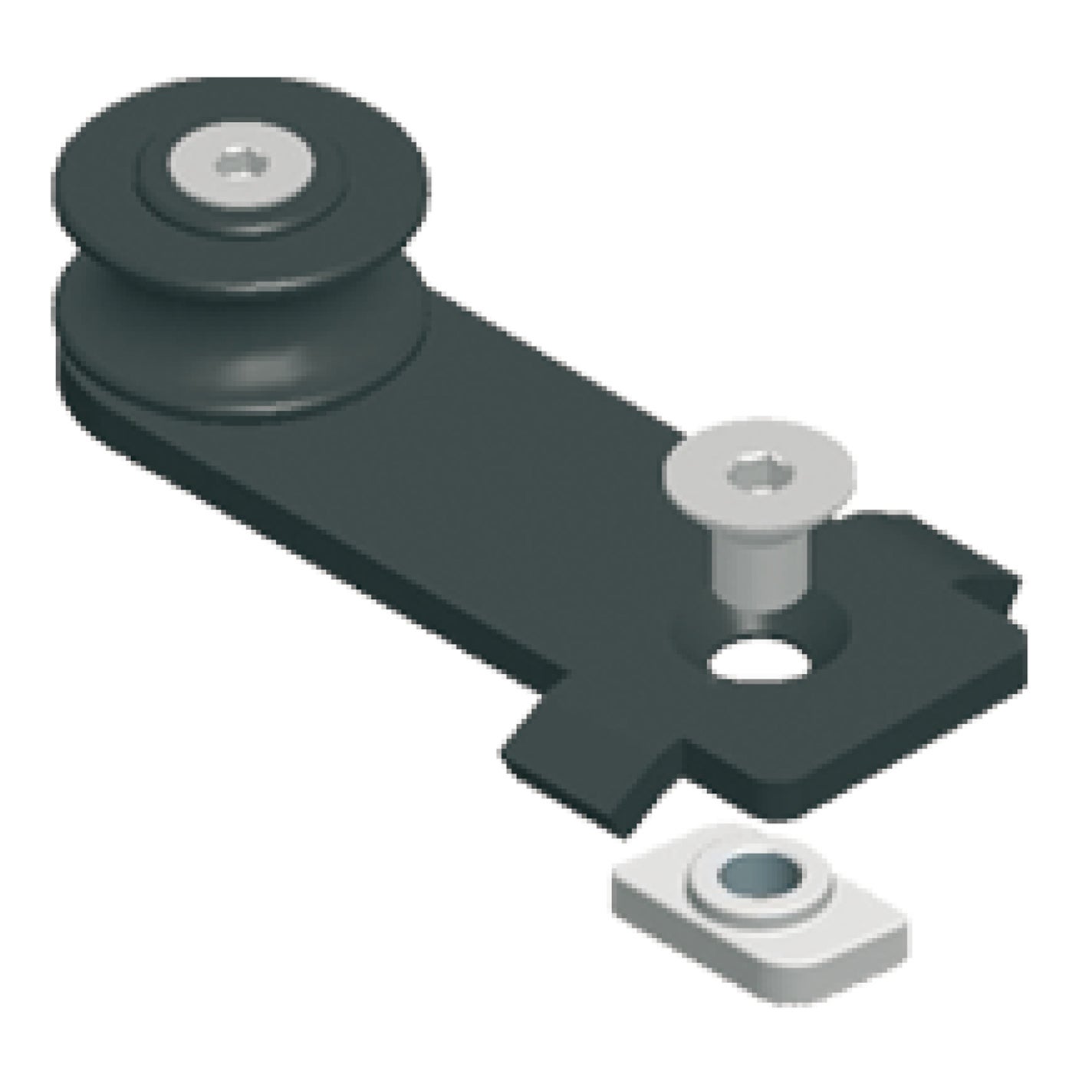

  10. TRUMPF 95 Limit Switch Rope Guide

    • Directs rope around limit switch

    • Ball bearing

    • Camlock nut included

    • For rope up to Ø 8 mm

    1. black
    €27.80 / pc.
    €33.08incl. 19% VAT

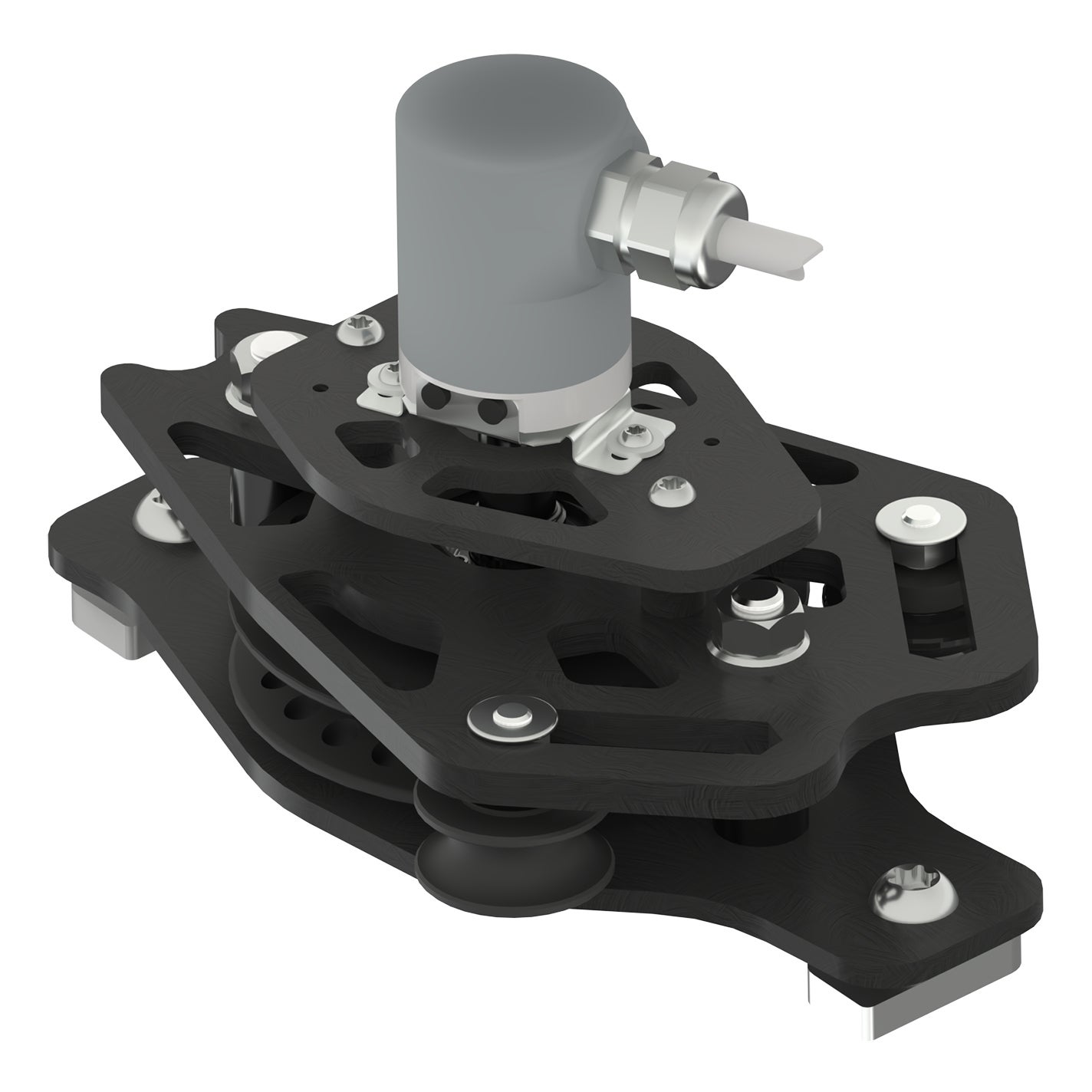

  11. TRUMPF 95 Return Pulley with Integral Incremental Encoder

    • With integrated incremental encoder

    • 500 pulses / rotation

    1. black
    €870.40 / pc.
    €1,035.78incl. 19% VAT

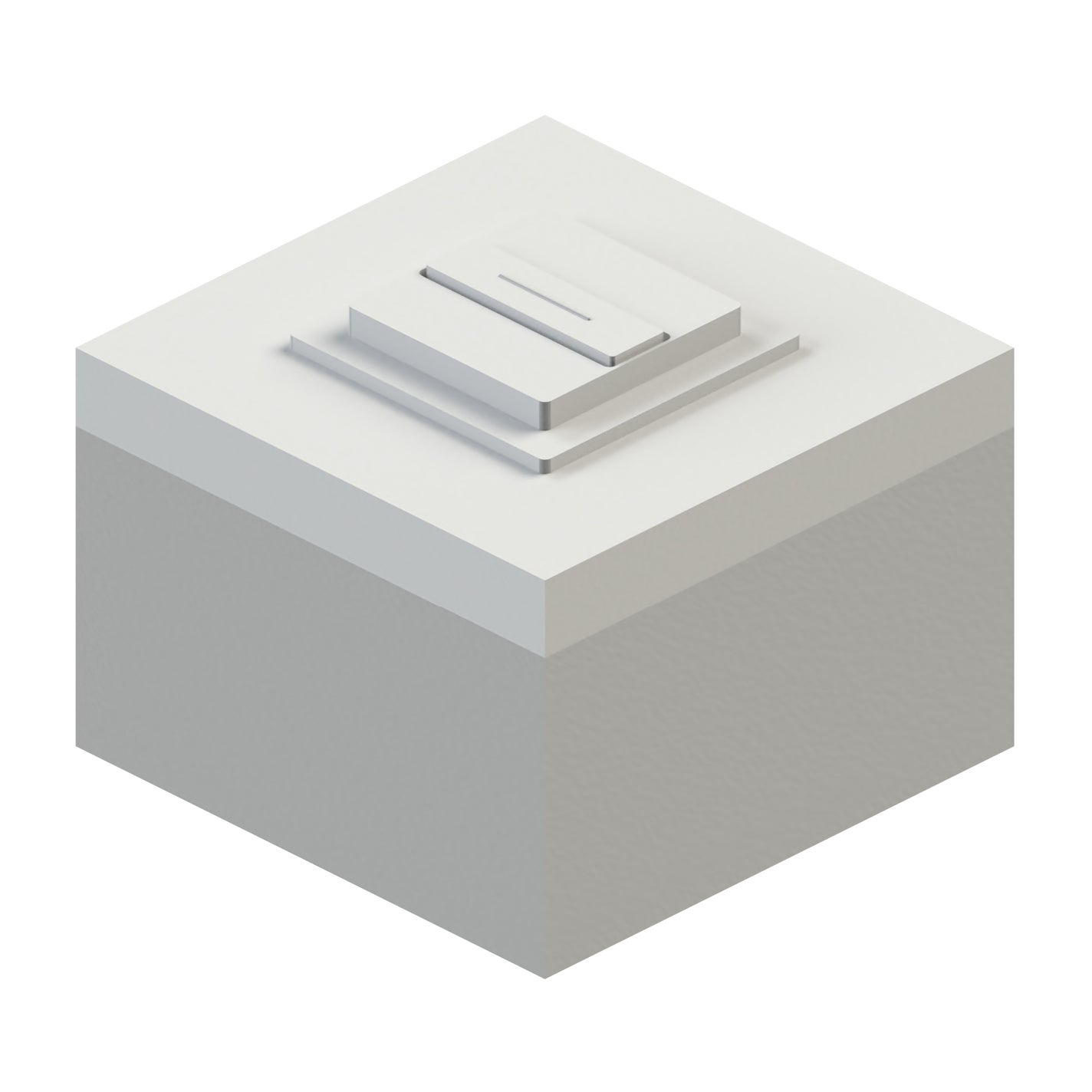

  12. TRAC-DRIVE Wall Switch

    positions open/stop/close

    1. white
    €33.80 / pc.
    €40.22incl. 19% VAT
