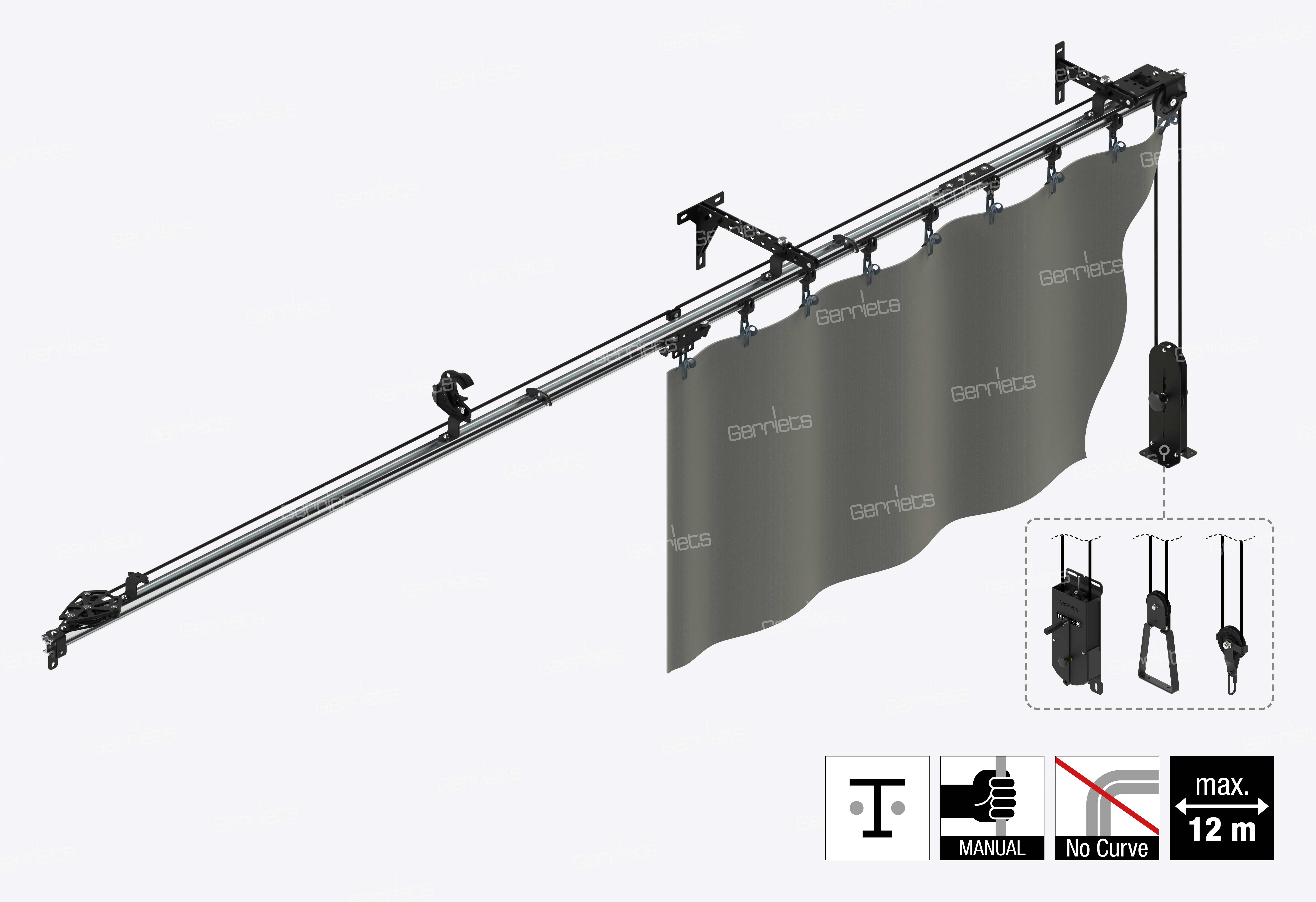

Manual Operation - One Piece Single Track
Produkty
TRUMPF 95 Track straight
Track Splice
End Stop
Side Cord Track Suspension Bracket
G-CLAMP 48/60 incl. fasteners for suspension mounting
Wall Mount Bracket
G3-Silence 2-Wheel Runner
Master Runner
Return Pulley
Head Pulley Block (downwards)
Side Cord Guide
Adjustable Floor Pulley
HAND-DRIVE
Stirrup Floor Pulley with foot stirrup
Floor Pulley for Weighting Sandback
Polyester Rope
TRUMPF 95 Track straight
• Extruded Aluminium profile EN-AW- 6060 T66
• Groove on top of track for mounting accessories
- czarny
- naturalnie anodowany
z143,36 zł / m b.
176,33 zł w tym. 23% VAT
TRUMPF 95 Track Splice
• Connects two track sections
• Joint pint included
125,44 zł / szt.
154,29 zł w tym. 23% VAT
TRUMPF 95 End Stop
• With hole to attach the curtain
82,88 zł / szt.
101,94 zł w tym. 23% VAT
TRUMPF 95/STUDIO End Stop HD
• With set screws
- czarny
- srebrny
92,29 zł / szt.
113,52 zł w tym. 23% VAT
TRUMPF 95 Slot Nut
• For accessories mounting
• Can be positioned at any place in the top groove of the track
• With hole to accept M8 bolt
10,75 zł / szt.
13,22 zł w tym. 23% VAT
TRUMPF 95 Slot Nut
• Positioned in top groove of the track
• With hole to accept M8 bolt
40,32 zł / szt.
49,59 zł w tym. 23% VAT
TRUMPF 95 Side Cord Track Suspension Bracket
• Camlock nut included
• With hole to accept M12 bolt
• For structure mounting or G-CLAMP 50/60 Art.-Nr. 3100008091 mounting
133,95 zł / szt.
164,76 zł w tym. 23% VAT
G-CLAMP 48/60 incl. fasteners for suspension mounting
• Universal Smart-Clamp 48-60 mm diameter with anchor point for safety rope
• Including fasteners for suspension mounting
• Fluted contact surface for ideal purchase
• Multilevel receiver for fasteners M10 and M12 (wrench size 17 & 19 mm)
• Captive clamp screw
• Premium powder coating RAL 9005 dull black
• TÜV certified
147,84 zł / szt.
181,84 zł w tym. 23% VAT
Wall Mount Bracket
• For suspension bracket mounting
• Variable wall distance
• Including fasteners for suspension bracket mounting
- czarny
- srebrny
z250,88 zł / szt.
308,58 zł w tym. 23% VAT
STUDIO/TRUMPF G3-Silence 2-Wheel Runner
• Polymer body with rubber bumps to reduce stowage noise
• Ball raced wheel with high-performance plastics tire for minimized noise emission
• Curtain mounting on 360°-plastics-swivel plus lateral receivers for curtain hooks
• Required every 20 cm as standard
- biały
- czarny
58,24 zł / szt.
71,64 zł w tym. 23% VAT
TRUMPF 95 Master Runner
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
599,87 zł / szt.
737,84 zł w tym. 23% VAT
TRUMPF 95 Master Runner with Limit Switch Arm
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
969,02 zł / szt.
1191,89 zł w tym. 23% VAT
TRUMPF 95 Master Runner with Overlap Arm
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
• Load capacity not applicable with overlap arms
807,74 zł / szt.
993,52 zł w tym. 23% VAT
TRUMPF 95 Scenery Runner with Scenery Attachment
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
• Load pick up with cardanic bedded scenery bracket for 8-90 mm thickness
1084,61 zł / szt.
1334,07 zł w tym. 23% VAT
TRUMPF 95 Return Pulley
• Returns rope 180º at the end of track
• Ball bearing
• Camlock nut included
• For rope up to Ø 8 mm
401,41 zł / szt.
493,73 zł w tym. 23% VAT
TRUMPF 95 Head Pulley Block (downwards)
• Diverts operating and returning cord downwards
• Ball raced pulleys for operating cord up to Ø 8 mm and cord keepers
• Individual arrangement along the track with sliding nuts
• Incl. fasteners and slot nuts
646,02 zł / szt.
794,60 zł w tym. 23% VAT
TRUMPF 95 Side Cord Guide
• Guides returning rope
• Camlock nut included
• For rope up to Ø 8 mm
138,43 zł / szt.
170,27 zł w tym. 23% VAT
Adjustable Floor Pulley
• With Ø 10 mm hole for screwing on the floor
• Tensioning by adjustable pulley
• For rope up to Ø 8 mm
z419,78 zł / szt.
516,33 zł w tym. 23% VAT
HAND-DRIVE
• Cord-Drive with integrated cord tensioner and a guided pair of spings
• Removable cover for commissioning and maintenance
• Centre mark for easy positioning perpendicularly to the track run
• Slot holes for easy mounting and adjustment
• Star knob allows toolless change of the crank lever in two positions: Short lever = fast; Long lever = strong
• The crank lever is equipped with a foldaway handle and may be locked in both positions (padlock is not in scope of delivery)
• Sticker "open/close" for individual signage of turning direction (provided detached)
• Curtain Speed and Drag Force at 60 rpm on the winch and Hand force 200 N
3024,00 zł / szt.
3719,52 zł w tym. 23% VAT
Stirrup Floor Pulley with foot stirrup
• With foot stirrup and Ø 10 mm hole for screwing on the floor
• Tensioned by foot pressure
• For rope up to Ø 8 mm
438,59 zł / szt.
539,47 zł w tym. 23% VAT
Floor Pulley for Weighting Sandback
• With receiving hole Ø 8,5 mm
• Rope tension with the aid of the sandsack (not included in scope of delivery)
• For rope up to Ø 8 mm
• Including quick link DIN 56927-B NG6
378,56 zł / szt.
465,63 zł w tym. 23% VAT
Self Tensioning Floor Pulley
• With Ø 10 mm hole for screwing on the floor
• Tensioning via metal block
• For mobile applications
• For rope up to Ø 8 mm
830,59 zł / szt.
1021,63 zł w tym. 23% VAT
Polyester Rope
black and white,
max. ropelength: 200,00 rm,
Ø 6,00 or 8,00 mm
- biały
- czarny
z7,17 zł / m b.
8,82 zł w tym. 23% VAT
