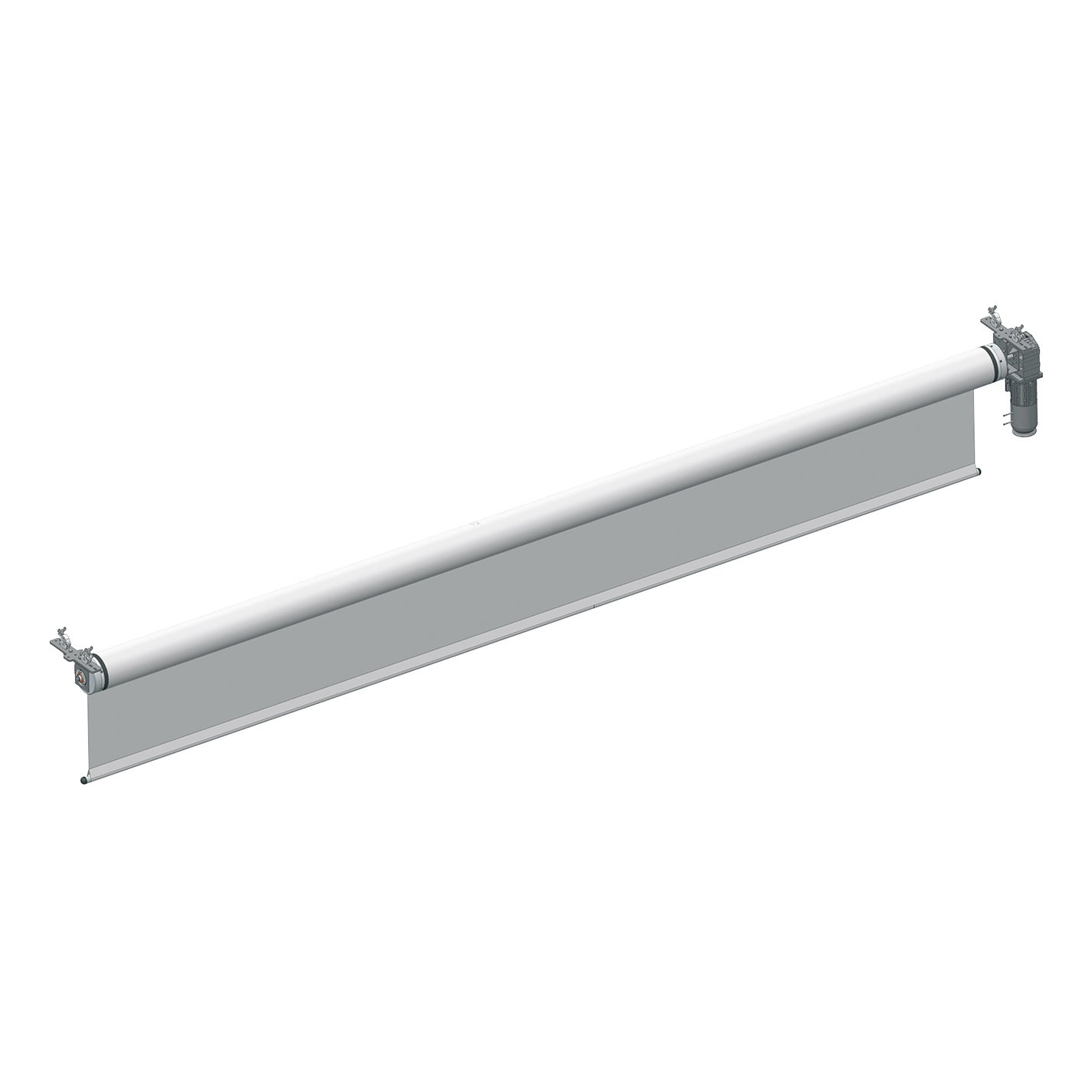

TUBE Roller screen system carbon TUBE

Details

• The screen surface is attached to the carbon fiber tube with tape.

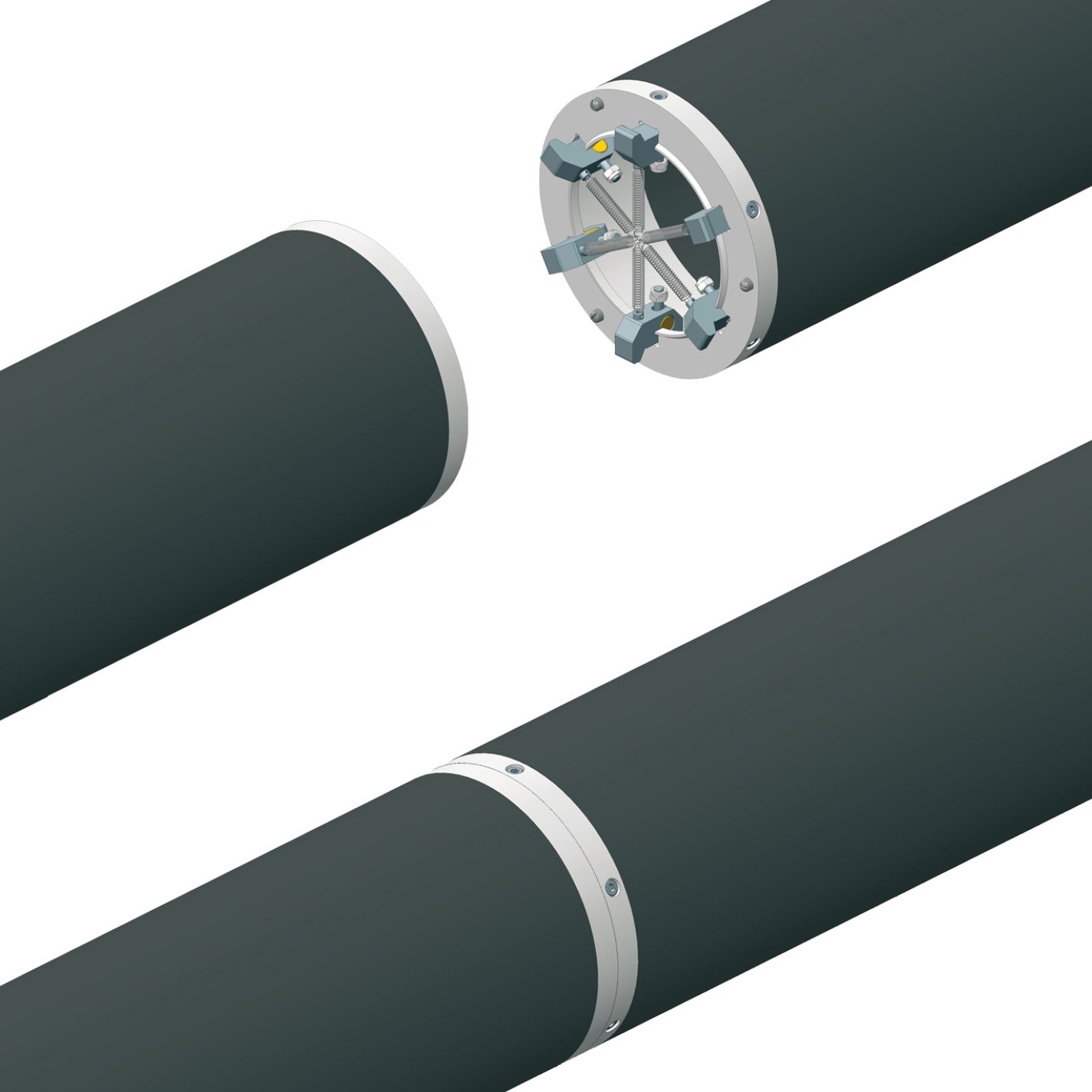

• Tubes are made of reinforced carbon fiber and are available in various standard lengths: 1, 2, 3, 4, 5 and 6 m / (3'3", 6'7", 9'10", 13'1", 16'5", and 19'8").

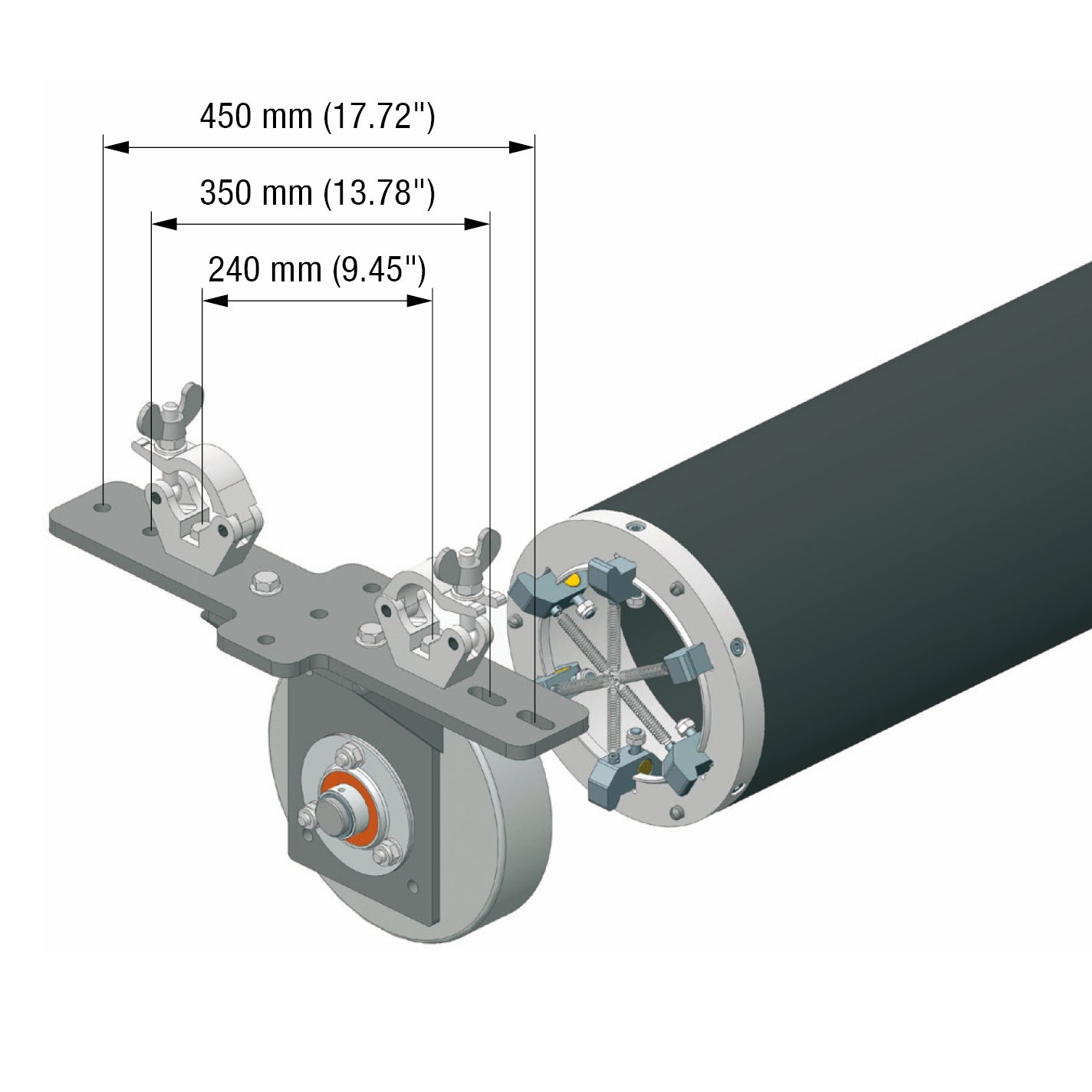

• Standard mounting consists of a flanged mounting bracket with a heavy-duty bearing at each end. Standard connection to pipe or truss via 50 mm / 2" half-couplers with a load rating of 750 kg / 1,650 lbs. Custom mounting brackets and accessories are available on request. TUBE can be mounted within a truss frame, directly to a truss/pipe or directly to ceilings.

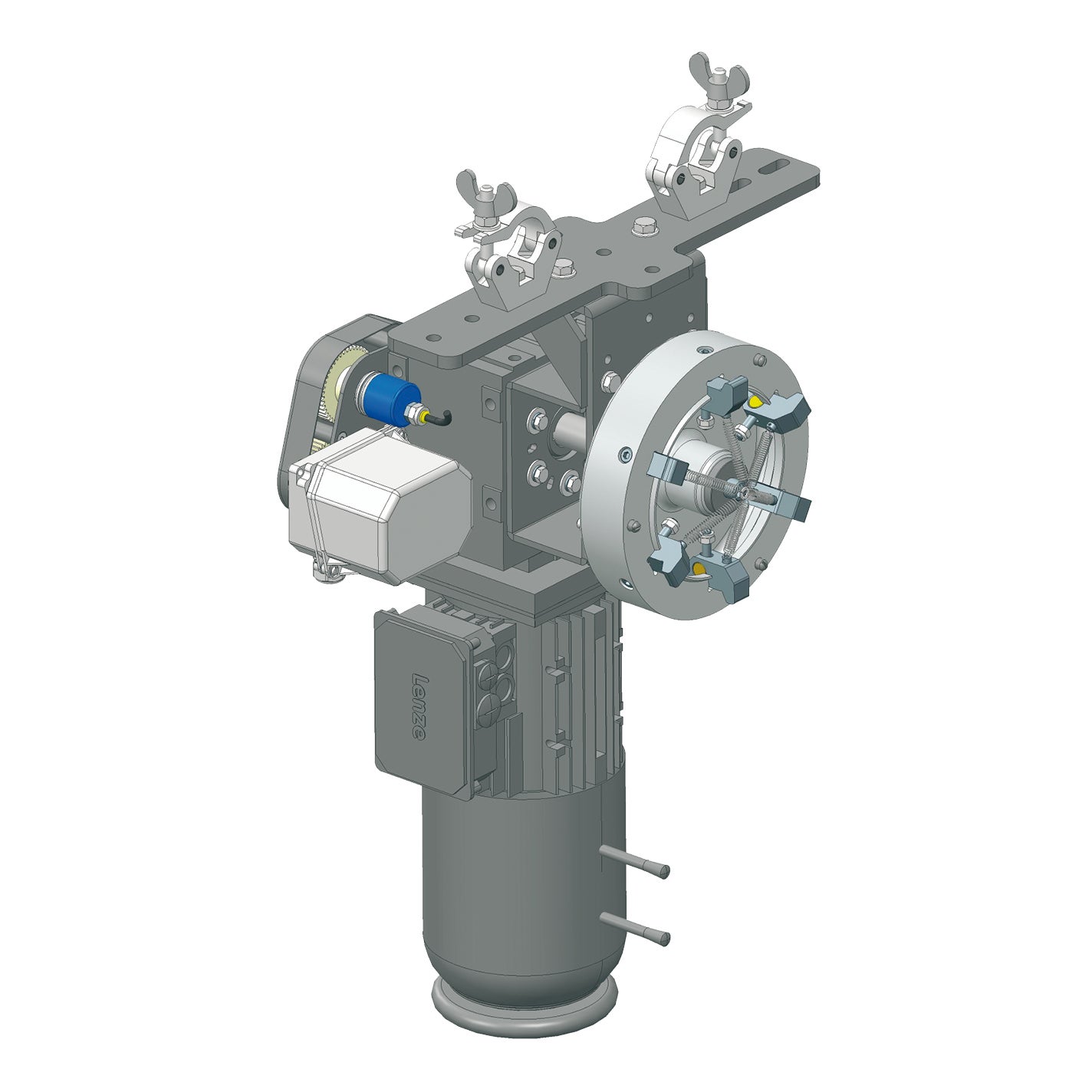

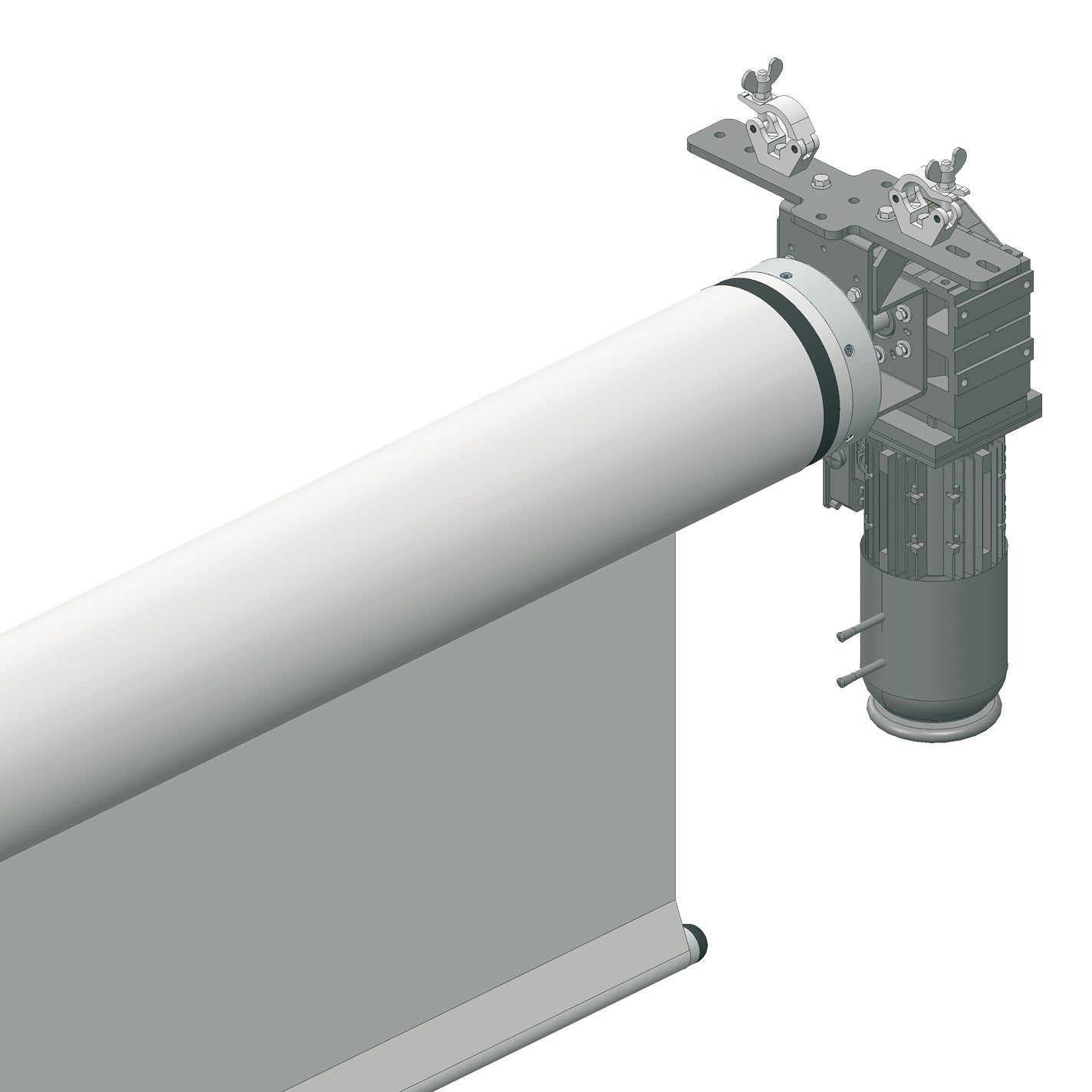

• Motor unit with gearbox, drive shaft and mounting bracket is mounted to either end of the tube.

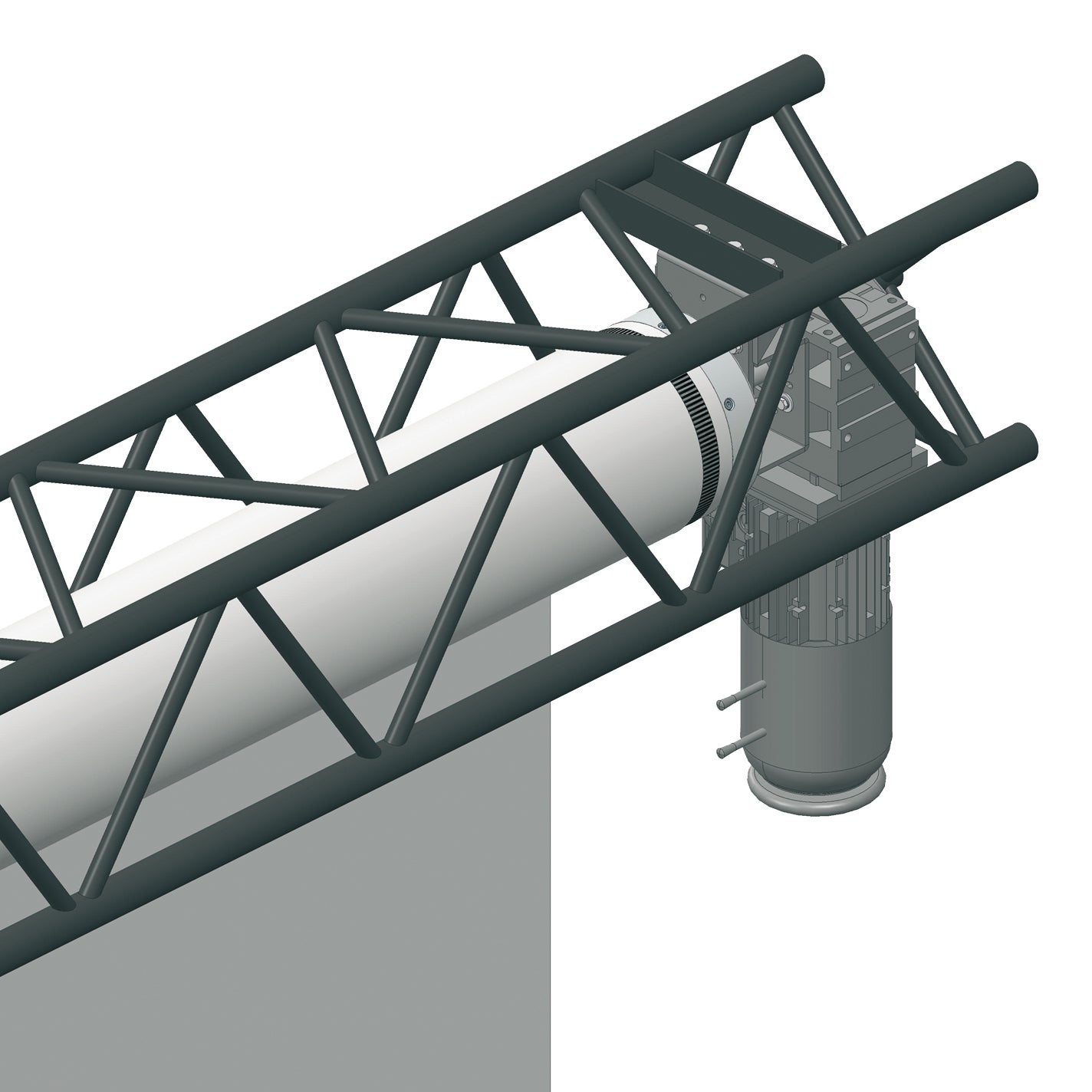

• TUBE can be mounted in a truss style frame with open bottom to ensure portable, secure applications.
• Power and control connections via secure Harting connectors.
• Incremental encoder to program 2 end and 3 intermediate stop positions. Plastic gear wheels ensure reliable and precise operation.
• Certified emergency stop.

Technical Information

• 3 x 230 /400 VAC double brake motor. Other voltages available.
• Variable speed control adjustable from approx. 0.1 - 0.9 m/s (4" - 35"/sec).

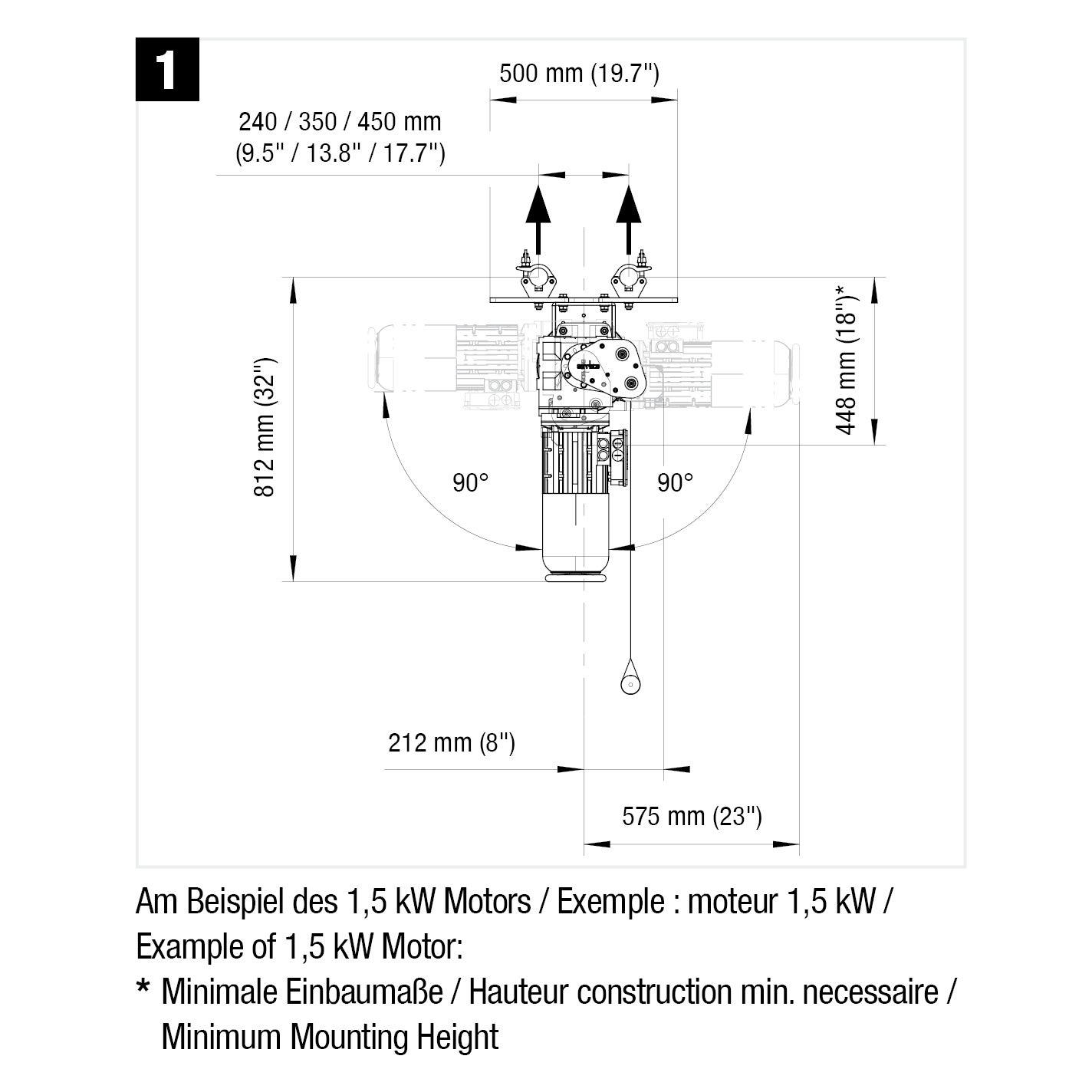

• Motor can be mounted quickly and easily in 3 different positions, each within a 90° rotation.
• Motor position can be changed quickly and easily without disassembly of the screen system.

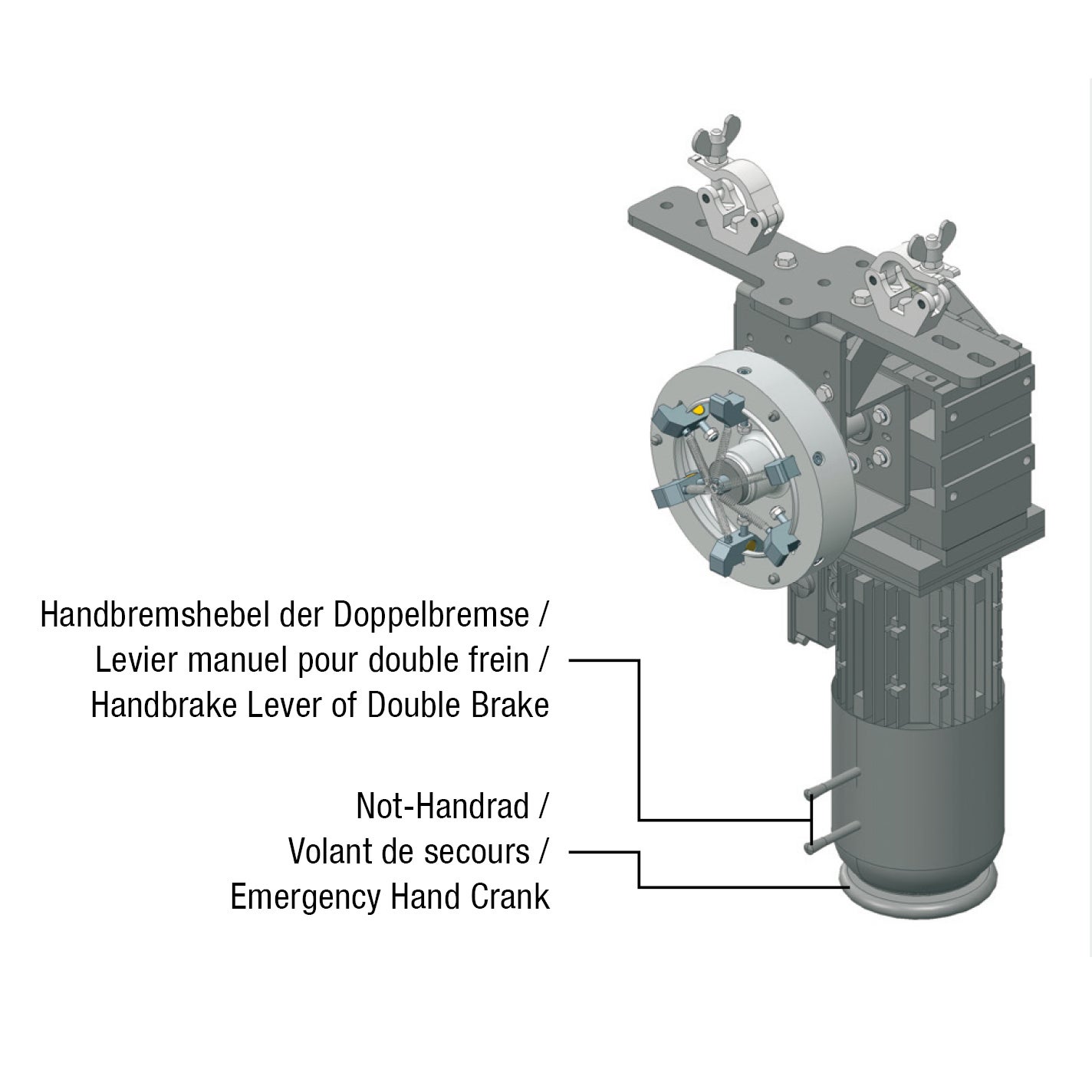

• Hand crank for manual override in case of emergencies and adjustments.
• Custom screen sizes are available on request.
• For permanent installations, a reinforced screen material is recommended. Projection screens without reinforcement are only recommended for temporary applications.
• Long term use will result in a wrinkled screen surface. For laser projections, a textile surface such as Sharkstooth scrim or laser scrim is recommended.
• Threaded aluminum bottom pipe, size: Ø 50 x 3 mm / 2" x 1/8", weight: 1.3 kg/m / 1 lb/ft.

Standard delivery:

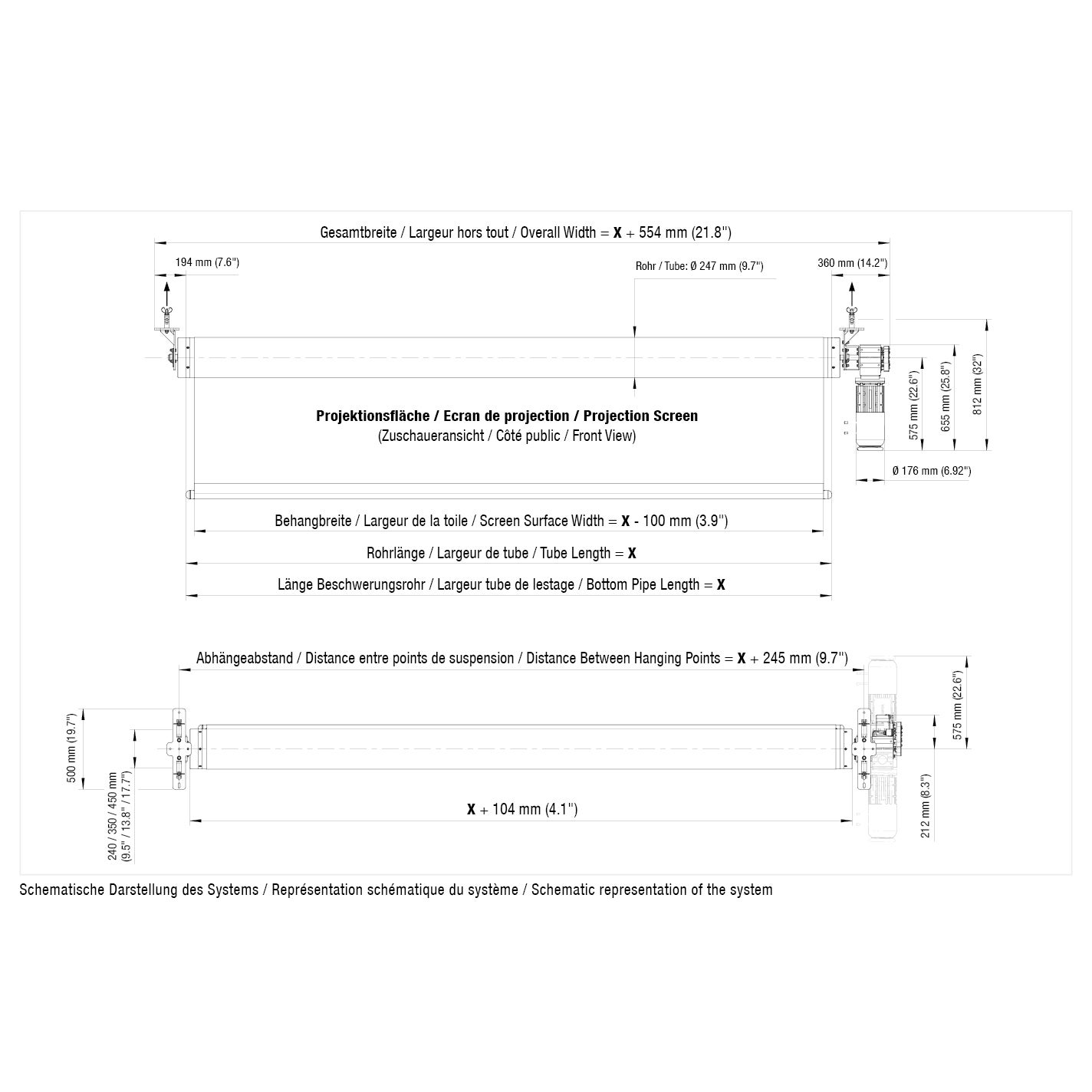

• Carbon tubes Ø 247 mm / 9.7" including axel shaft and adjustable mounting brackets at each end. Custom size tube lengths are available at an additional charge.
• Motor end mounting assembly.
• Non-motor end mounting assembly.
• Demountable motor unit with limit switches and incremental encoder.
• Control and power cable, 25 m / 82'0" length.
• Half-coupler clamps on mounting bracket. Load rating: 750 kg / 1,653 lbs max. Ø: 50 mm / 2".
• G-FRAME 54 control system. Standard operation:
  UP-DOWN positions plus 3 intermediate stop positions and speed adjustment.
• Threaded aluminum bottom pipe, size: Ø 50 x 3 mm / 2" x 1/8", weight: 1.3 kg/m / 1 lb/ft.
• Maximum weight includes bottom pipe.
• Installation and operation manual.

Motor technical data:

• Power: 1,5 kW
• Speed: max. 0,9 m/s
• Weight: 47 kg
