CARGO Bottom Cord Operation

The bottom cord CARGO track system is designed for straight, single track configurations. The system is available in a manual or motorized version.

32 Products

  1. CARGO Track

    • Carriers run on the inside of the track

    • Material EN AW-6063 T66

    • Overlength up to 8,00 m on request

    from€250.00 / rm
    €297.50incl. 19% VAT

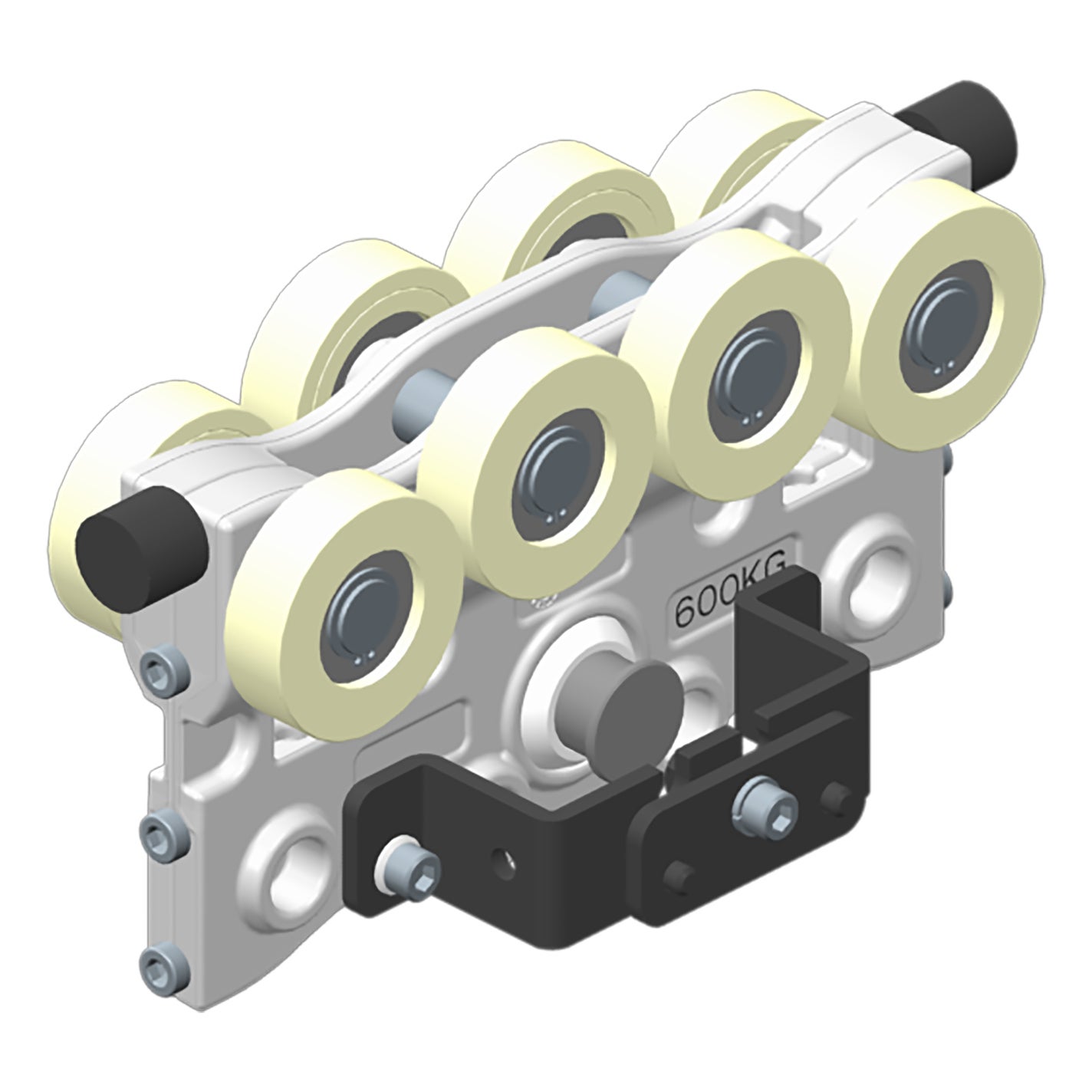

  2. CARGO Master Runner, Model B, with rope clamp

    black
    1. black
    €375.00 / pc.
    €446.25incl. 19% VAT

  3. CARGO ROPE-/TRAC-DRIVE Mounting Kit

    • For mounting of ROPE-/TRAC-DRIVE motors TD12 and TD30

    • Accessories needed for CARGO S: Art.-No. 3128 1901 (Adaption Plate CARGO S)

    1. black
    €72.00 / pc.
    €85.68incl. 19% VAT

  4. CARGO Master Runner, Model B, with rope clamp and Limit Switch Arm

    • Aluminium body

    • Application of load exclusively by bolt Ø 20 mm for external load pick up

    • Extremely smooth running, ball bearing wheels

    • Reversely applicable

    1. silber
    €458.40 / pc.
    €545.50incl. 19% VAT

  5. CARGO Head Pulley (downwards), for motorised systems

    • Diverts operating and returning cord downwards

    • Ball raced pulleys for operating cord up to Ø 8,00 mm and cord keepers

    • Individual arrangement along the track with sliding nuts

    • Incl. fasteners and protective cover

    1. black
    €561.40 / pc.
    €668.07incl. 19% VAT

  6. CARGO Head Pulley (downwards) for manual systems

    • Diverts operating and returning cord downwards

    • Ball raced pulleys for operating cord up to Ø 8,0 mm and cord keepers

    • Individual arrangement along the track with sliding nuts

    • Incl. fasteners and protective cover

    1. black
    €515.00 / pc.
    €612.85incl. 19% VAT

  7. CARGO Return Pulley

    • For bottom cord operation

    • Returns cord at the end of the track

    • Ball raced pulley for operating cord up to Ø 8,00 mm and cord keepers

    • Variable mounting along the track with camlock nuts


    1. black
    €432.60 / pc.
    €514.79incl. 19% VAT

  8. CARGO Universal rail connector

    • For CARGO profiles S / M / L / XL

    • Connecting track sections via lateral channels

    • Incl.quadruple slot nuts and self-locking hexagon socket screws, wrench size (AF) 6,00 mm

    • Set consisting of 4 pieces


    1. black
    €70.00 / pc.
    €83.30incl. 19% VAT

  9. CARGO Poulie de tirage, vers le haut

    • For bottom cord operation

    • Diverts operating and returning cord upwards

    • Ball raced pulleys for operating cord up to Ø 8,00 mm and cord keepers.Individual arrangement along the track with sliding nuts

    • Incl. fasteners and protective cover.


    1. black
    €551.10 / pc.
    €655.81incl. 19% VAT

  10. CARGO Turn-in slot nut

    • To insert into the upper channel of the track profile

    • For mounting of ad-on parts and accessories. Not to use as load carring part or suspension

    • With threaded hole M8 / M10 / M12

    €18.50 / pc.
    €22.02incl. 19% VAT

  11. CARGO S Mounting Kit

    • Needed to mount return pulleys as well as TRAC-DRIVE to profile size S


    1. silber
    €24.00 / pc.
    €28.56incl. 19% VAT

  12. CARGO Standard Slot Nut M6

    • To insert into the channels of the profile

    • With threaded hole M6

    1. silber
    €1.50 / pc.
    €1.79incl. 19% VAT

  13. CARGO Cord Guide

    • Guides the returning cord on straight tracks

    • Ball raced pulley for operating cord up to Ø 8,00 mm

    • Individual arrangement along the track with a sliding nut

    • Incl. fasteners


    1. black
    €123.60 / pc.
    €147.08incl. 19% VAT

  14. CARGO Double-Slot Nut short

    • To insert into the channels of the profile

    €2.90 / pc.
    €3.45incl. 19% VAT

  15. CARGO Double-Slot Nut long

    • To insert into the channels of the profile

    €3.40 / pc.
    €4.05incl. 19% VAT

  16. CARGO Fix End Stop

    • Mandatory to secure free track ends

    • Drilled firmly to end of track or along the track

    • Suitable for all CARGO tracks


    1. silber
    €18.50 / pc.
    €22.02incl. 19% VAT

  17. CARGO Variable End Stop

    • Individually positionable along the track

    • Simple and flexible assembly thanks to insertable sliding nut

    • Suitable for all CARGO tracks


    1. black
    €29.90 / pc.
    €35.58incl. 19% VAT

  18. CARGO Fix End stop with curtain suspension

    • Drilled firmly to end of track or along the track

    • Pendular curtain suspension

    • Suitable for all CARGO tracks


    1. black
    €35.00 / pc.
    €41.65incl. 19% VAT

  19. CARGO Variable End Stop with Curtain Suspension

    • Individually positionable along the track

    • Pendular curtain suspension

    • Simple and flexible assembly thanks to insertable sliding nut

    • Suitable for all CARGO tracks


    1. black
    €45.30 / pc.
    €53.91incl. 19% VAT

  20. CARGO End Plate

    • Heavy-duty plastic

    • Helps to keep the inside of the track free of dirt and debris

    from€23.70 / pc.
    €28.20incl. 19% VAT

  21. CARGO End Stop Bolt Drilling Template fixed

    • Perfectly aligns holes


    1. silber
    €24.70 / pc.
    €29.39incl. 19% VAT

  22. CARGO Telescopic suspension

    •For mounting to an on–site substructure

    •Upper mounting plate with through–holes for M12, rotatable in 90° increments according to installation conditions

    •Form–fit, telescopic design, adjustable with millimetre precision over a range of 600–2700 mm

    •Prepared for fastening diagonal braces in longitudinal and transverse directions

    •Load capacity (WLL/SWL): up to 750 kg

    from€445.00 / pc.
    €529.55incl. 19% VAT

  23. CARGO Suspension Bracket for Half Couple M12

    • Receiving hole M12

    • Optional accessory: Half-Coupler (ELL/R) 750,00 kg Art.-No. 4309009853 and fastening screw


    1. black
    €102.00 / pc.
    €121.38incl. 19% VAT

  24. CARGO Eye Style Suspension Bracket

    • For suspension on authorized load supporting and slinging devices

    • Delivery includes quick link form B (long) 12,00 mm


    1. black
    €133.90 / pc.
    €159.34incl. 19% VAT

  25. CARGO Wire rope suspension

    • With steel cable, robe lock DIN 13411-7 and 1/2“ turnbuckle

    • For steel cables 6,00 - 8,00 mm DIN EN 12385


    1. black
    €437.80 / pc.
    €520.98incl. 19% VAT

  26. CARGO Curtain Runner

    • Steel body with rubber bumps to reduce stowage noise

    • 2 ball raced stabilizing and 2 wheels with high-performance plastics tire for minimized noise emission

    • Curtain mounting on 360°-plastics-swivel plus lateral receivers for curtain hooks

    • Incl. broken wheel retainer

    • Bunched length optimized to 43,00 mm in stowage


    1. black
    €49.40 / pc.
    €58.79incl. 19% VAT

  27. Polyester Pull Rope

    100 % polyester,

    black, Ø 8,00 mm,

    tensile strength approx. 1.150 daN.

    1. black
    €2.80 / rm
    €3.33incl. 19% VAT

  28. TRAC-DRIVE TD12

    • 2-grooved pulley, direct cabling

    • 40 % duty cycle

    • 3 x 230 / 400 VAC - other voltages available

    €3,162.10 / pc.
    €3,762.90incl. 19% VAT

  29. TRAC-DRIVE TD30

    • 3 grooved pulleys, direct cabling

    • 40 % duty cycle

    • 3 x 230 / 400 VAC - other voltages available


    €3,883.10 / pc.
    €4,620.89incl. 19% VAT

  30. TRAC-DRIVE Precabling of motor with 2 limit switches

    • Preparation for motor connections / limit switch 2 pieces on terminal strip

    • XRL connection for limit switch cable

    • for drive with fixed speed

    • Recommended for on-site control

    €391.40 / pc.
    €465.77incl. 19% VAT

  31. TRAC-DRIVE Precabling of motor for 4 limit switches

    • Preparation for motor connections / limit switch 4 pieces on terminal strip

    • XRL connection for limit switch cable

    • for drive with fixed speed

    • Recommended for on-site control

    €448.10 / pc.
    €533.24incl. 19% VAT

  32. TRAC-DRIVE Additional Charge, Incremental encoder integrated

    • Additional equipment Incremental encoder, mounted on motor

    1. black
    €1,246.30 / pc.
    €1,483.10incl. 19% VAT
