Ručni pogoni

Komponente za povlačenje sajle za TRUMPF, TRUMPF 95, JOKER 95 i KING

13 Prerađevina

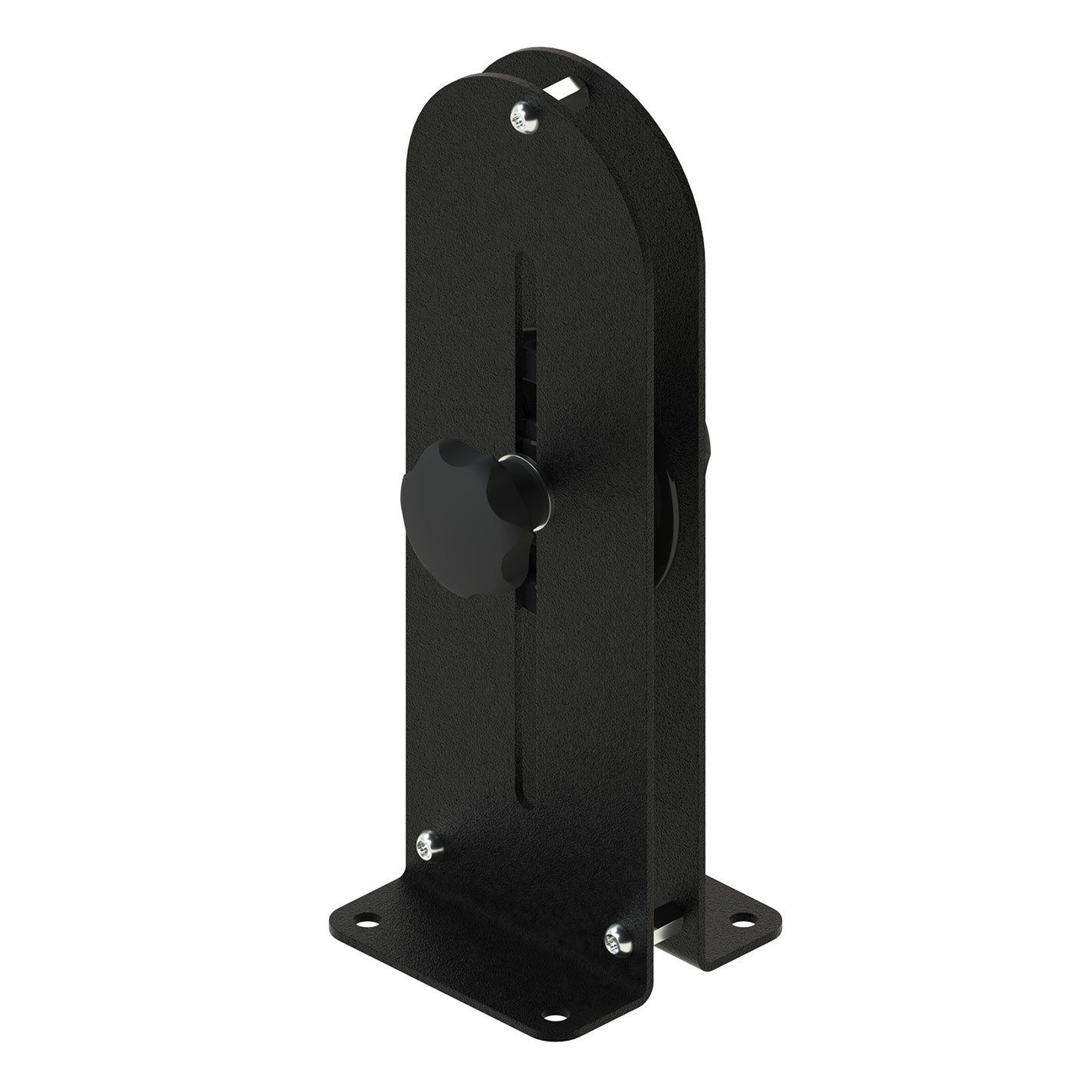

  1. Adjustable Floor Pulley

    • With Ø 10 mm hole for screwing on the floor

    • Tensioning by adjustable pulley

    • For rope up to Ø 8 mm

    93,70 € / kom

    114,31 € incl. 22% VAT

  2. HAND-DRIVE

    • Cable drive with integrated cable tensioning device and guided double spring

    • Serviceable housing for easy installation and maintenance

    • Central axis marking as a positioning aid, perpendicular to the rail direction

    • Slotted holes for simple mounting and alignment

    • Crank position adjustable without tools via star grip, with two lever settings: short lever arm = fast; long lever arm = powerful

    • The crank equipped with a folding handle can also be locked in both positions (lock not included)

    • “OPEN / CLOSE” label supplied separately for individual marking of the rotation direction

    1. crno

    675,00 € / kom

    823,50 € incl. 22% VAT

  3. Track Mounted Pulley

    • For rope up to Ø 8 mm

    • Used to move the curtain via 22 mm manila rope

    • Standard 8 mm rope used at track level

    1. crno

    875,50 € / kom

    1.068,11 € incl. 22% VAT

  4. Hemp Rope Adjustable Floor Pulley 350

    • For Ø 22 mm rope

    • Tension distance: 350 mm

    1. crno

    273,00 € / kom

    333,06 € incl. 22% VAT

  5. Hemp Rope Pulley for weighting sandbag

    • With mounting hole Ø 10,5 mm

    • Rope tension through sandbag

    • Up to max. Ø 22 mm rope

    • Including quick link DIN 56927-B NG6

    1. crno

    123,60 € / kom

    150,79 € incl. 22% VAT

  6. Stirrup Floor Pulley with foot stirrup

    • With foot stirrup and Ø 10 mm hole for screwing on the floor

    • Tensioned by foot pressure

    • For rope up to Ø 8 mm

    1. crno

    97,90 € / kom

    119,44 € incl. 22% VAT

  7. Floor Pulley for Weighting Sandback

    • With receiving hole Ø 8,5 mm

    • Rope tension with the aid of the sandsack (not included in scope of delivery)

    • For rope up to Ø 8 mm

    • Including quick link DIN 56927-B NG6

    1. crno

    84,50 € / kom

    103,09 € incl. 22% VAT

  8. Self Tensioning Floor Pulley

    • With Ø 10 mm hole for screwing on the floor

    • Tensioning via metal block

    • For mobile applications

    • For rope up to Ø 8 mm

    1. crno

    185,40 € / kom

    226,19 € incl. 22% VAT

  9. Polyester Rope

    Polyester Rope

    1,60 € / dm

    1,95 € incl. 22% VAT

  10. Polyester Pull Rope

    100 % polyester,

    black, Ø 8,00 mm,

    tensile strength approx. 1.150 daN.

    1. crno

    2,80 € / dm

    3,42 € incl. 22% VAT

  11. KEVLAR rope

    black, Ø 8,00 mm,

    hardly stretchable (approx. 1 %), tensile strength approx. 1.200 daN.

    1. crno

    4,80 € / dm

    5,86 € incl. 22% VAT

  12. Hemp Rope

    natural, Ø 22,00 mm,

    up to 15,00 m.

    1. prirodna bež

    339,90 € / kom

    414,68 € incl. 22% VAT

  13. Hemp Rope, cut length over 15 m, per meter increment

    natural, Ø 22,00 mm,

    cut length over 15,00 m in meter increments.

    19,60 € / dm

    23,91 € incl. 22% VAT
