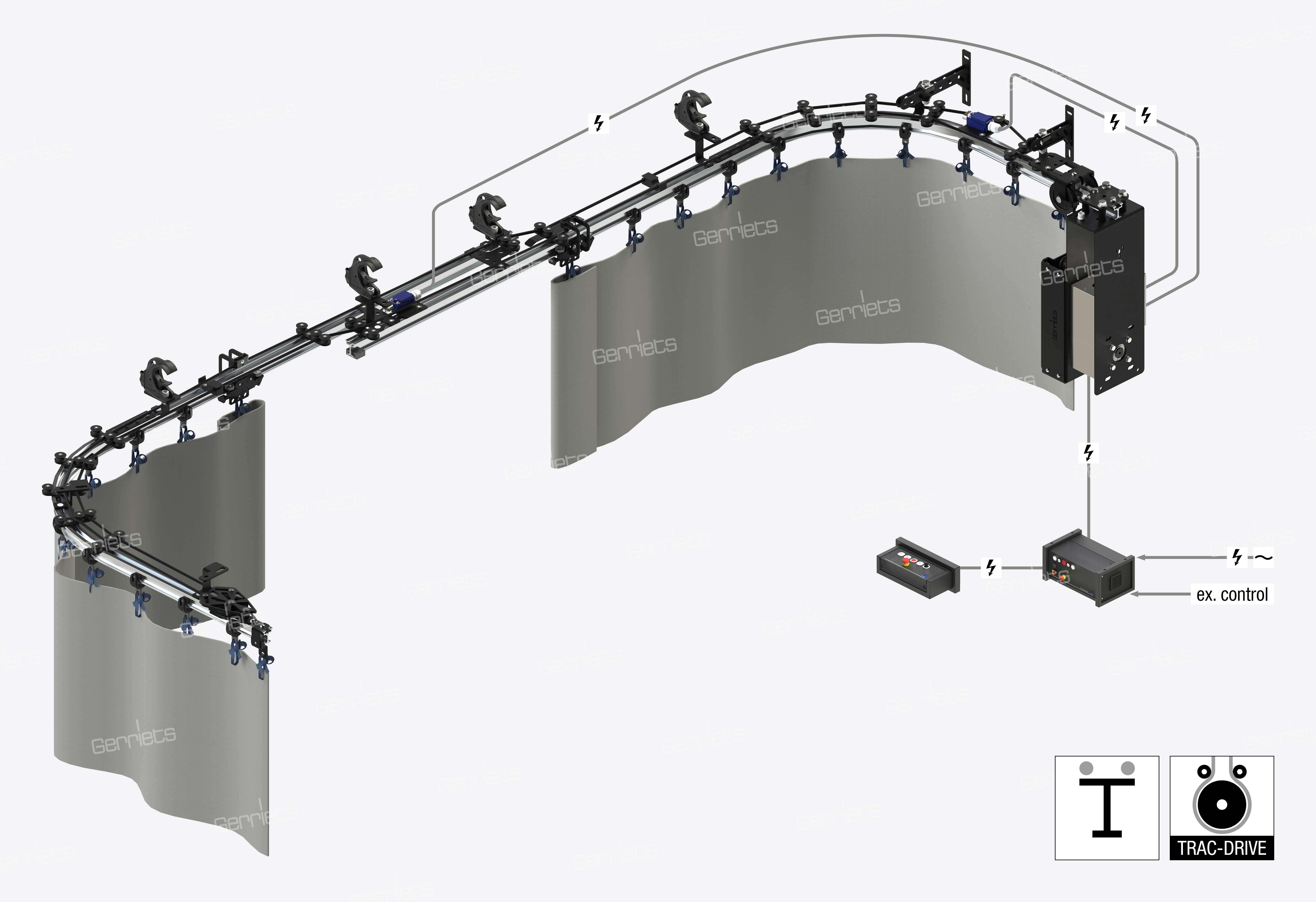

TRAC-DRIVE Cord Drives - Two Parts Double Track
Products
TRUMPF 95 Track straight
TRUMPF 95 Track curved - with Splice
Track Splice
End Stop
TRUMPF 95/STUDIO End Stop HD
Top Cord Track Suspension Bracket
G-CLAMP 48/60 incl. fasteners for suspension mounting
Wall Mount Bracket
STUDIO/TRUMPF G3-Silence 2-Wheel Runner
Master Runner
Master Runner with Limit Switch Arm
Return Pulley
Head Pulley Block (downwards)
Top Cord Guide
Top Cord Guide for curved track sections
Polyester Rope
TRAC-DRIVE TD12
TRAC-DRIVE Mounting Bracket
Limit Switch, Track Mounted
Limit Switch Plate with Pulley
G-FRAME 28 Control Cabinet
Control and Power Cable for fixed Speed
G-FRAME 28 Control Cabinet
TRAC-DRIVE Secondary Remote Control Panel
Optional Accessories for Control Unit: DMX card
Hand-Held Remote Control + Receiver
TRUMPF 95 Track straight
• Extruded Aluminium profile EN-AW- 6060 T66
• Groove on top of track for mounting accessories
- black
- silver anodized
from€32.00 / rm
€38.08 incl. 19% VAT
TRUMPF 95 Track curved - with Splice
• Extruded Aluminium profile EN-AW- 6060 T66
• Groove on top of track for mounting accessories
• 1/4 circle, 90° curve
• Radius min. 50 cm
- black
- silver anodized
from€175.10 / pc.
€208.37 incl. 19% VAT
TRUMPF 95 Track Splice
• Connects two track sections
• Joint pint included
€28.00 / pc.
€33.32 incl. 19% VAT
TRUMPF 95 End Stop
• With hole to attach the curtain
€18.50 / pc.
€22.02 incl. 19% VAT
TRUMPF 95/STUDIO End Stop HD
• With set screws
- black
- silver
€20.60 / pc.
€24.51 incl. 19% VAT
TRUMPF 95 Slot Nut
• For accessories mounting
• Can be positioned at any place in the top groove of the track
• With hole to accept M8 bolt
€2.40 / pc.
€2.86 incl. 19% VAT
TRUMPF 95 Slot Nut
• Positioned in top groove of the track
• With hole to accept M8 bolt
€9.00 / pc.
€10.71 incl. 19% VAT
TRUMPF 95 Top Cord Track Suspension Bracket
• Camlock nut included
• With hole to accept M12 bolt
• For structure mounting or G-CLAMP Art.-No. 3100008091 mounting
• Number and spacing depend on the load on the rail (see load diagrams in the Trumpf95 brochure)
€29.90 / pc.
€35.58 incl. 19% VAT
TRUMPF 95 Double Track Suspension Bracket
• Universal and central suspension for (single and) double track systems
• As offset suspension bracket if oriented with the track and as centre overlap or double track system suspension bracket if turned 90° crosswise to the track
• Centre mark for easy positioning with or crosswise to the track run
• With through hole M12 for mounting to substructure or G-CLAMP 50/60 Art.-N°: 4302009061
€29.90 / pc.
€35.58 incl. 19% VAT
G-CLAMP 48/60 incl. fasteners for suspension mounting
• Universal Smart-Clamp 48-60 mm diameter with anchor point for safety rope
• Including fasteners for suspension mounting
• Fluted contact surface for ideal purchase
• Multilevel receiver for fasteners M10 and M12 (wrench size 17 & 19 mm)
• Captive clamp screw
• Premium powder coating RAL 9005 dull black
• TÜV certified
€33.00 / pc.
€39.27 incl. 19% VAT
Wall Mount Bracket
• For suspension bracket mounting
• Variable wall distance
• Including fasteners for suspension bracket mounting
- black
- silver
from€56.00 / pc.
€66.64 incl. 19% VAT
STUDIO/TRUMPF G3-Silence 2-Wheel Runner
• Polymer body with rubber bumps to reduce stowage noise
• Ball raced wheel with high-performance plastics tire for minimized noise emission
• Curtain mounting on 360°-plastics-swivel plus lateral receivers for curtain hooks
• Required every 20 cm as standard
- white
- black
€13.00 / pc.
€15.47 incl. 19% VAT
TRUMPF 95 Master Runner
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
€164.80 / pc.
€196.11 incl. 19% VAT
TRUMPF 95 Master Runner with Overlap Arm
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
€206.00 / pc.
€245.14 incl. 19% VAT
TRUMPF 95 Master Runner with Limit Switch Arm
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
€221.50 / pc.
€263.59 incl. 19% VAT
TRUMPF 95 Master Runner with Overlap Arm and Limit Switch Arm
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• With rope attachment
€267.80 / pc.
€318.68 incl. 19% VAT
TRUMPF 95 Scenery Runner with Scenery Attachment
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• Load pick up with cardanic bedded fastening M8
• Technical details: please see Art.-No. 3100000071
• For scenery, thickness: 8-60 mm
€252.40 / pc.
€300.36 incl. 19% VAT
TRUMPF 95 Scenery Runner with Scenery Attachment, Top Cord Rope Attachment and Limit Switch Arm
• 4 top load bearing and 4 bottom stabilizing wheels, ball bearing
• With fall protection
• Load pick up with cardanic bedded fastening M8
• For scenery, thickness: 8-60 mm
€303.90 / pc.
€361.64 incl. 19% VAT
TRUMPF 95 Return Pulley
• Returns rope 180º at the end of track
• Ball bearing
• Camlock nut included
• For rope up to Ø 8 mm
€89.60 / pc.
€106.62 incl. 19% VAT
TRUMPF 95 Head Pulley Block (downwards)
• Diverts operating and returning cord downwards
• Ball raced pulleys for operating cord up to Ø 8 mm and cord keepers
• Individual arrangement along the track with sliding nuts
• Incl. fasteners and slot nuts
€144.20 / pc.
€171.60 incl. 19% VAT
TRUMPF 95 Head Pulley Block (upwards)
• Diverts operating and returning cord downwards
• Ball raced pulleys for operating cord up to Ø 8 mm and cord keepers
• Individual arrangement along the track with sliding nuts
• Incl. fasteners and slot nuts
€154.50 / pc.
€183.86 incl. 19% VAT
TRUMPF 95 Horizontal Deviation Pulley
• Diverts operationg rope horizontally
• Ball bearing
• Camlock nut included
• For rope up to Ø 8 mm
€123.60 / pc.
€147.08 incl. 19% VAT
TRUMPF 95 Top Cord Guide
• For straight track sections
• Guides operating and returning cord
• Camlock nut included
• For rope up to Ø 8 mm
€24.70 / pc.
€29.39 incl. 19% VAT
TRUMPF 95 Top Cord Guide for curved track sections
• For curved track sections
• Guides operating and returning cord
• Ball bearing
• Camlock nut included
• For rope up to Ø 8 mm
€42.20 / pc.
€50.22 incl. 19% VAT
Polyester Rope
black and white,
max. ropelength: 200,00 rm,
Ø 6,00 or 8,00 mm
- white
- black
from€1.60 / rm
€1.90 incl. 19% VAT
KEVLAR rope
black, Ø 8,00 mm,
hardly stretchable (approx. 1 %), tensile strength approx. 1.200 daN.
€4.80 / rm
€5.71 incl. 19% VAT
TRAC-DRIVE TD12
• 2-grooved pulley, direct cabling
• 40 % duty cycle
• 3 x 230 / 400 VAC - other voltages available
€3,162.10 / pc.
€3,762.90 incl. 19% VAT
TRAC-DRIVE TD30
• 3 grooved pulleys, direct cabling
• 40 % duty cycle
• 3 x 230 / 400 VAC - other voltages available
€3,883.10 / pc.
€4,620.89 incl. 19% VAT
TRUMPF 95 TRAC-DRIVE Mounting Bracket
• For direct track mounting
• For TD12 and TD30
€52.50 / pc.
€62.48 incl. 19% VAT
TRAC-DRIVE Precabling of motor with 2 limit switches
• Preparation for motor connections / limit switch 2 pieces on terminal strip
• XRL connection for limit switch cable
• for drive with fixed speed
• Recommended for on-site control
€391.40 / pc.
€465.77 incl. 19% VAT
TRAC-DRIVE Precabling of motor for 4 limit switches
• Preparation for motor connections / limit switch 4 pieces on terminal strip
• XRL connection for limit switch cable
• for drive with fixed speed
• Recommended for on-site control
€448.10 / pc.
€533.24 incl. 19% VAT
TRUMPF 95 Limit Switch, Track Mounted
• With track mounting plate
• Camlock nut included
• Without cable
€67.00 / pc.
€79.73 incl. 19% VAT
TRUMPF 95 Limit Switch Plate with Pulley
• With track mounting plate
• Without cable
€91.70 / pc.
€109.12 incl. 19% VAT
TRUMPF 95 Limit Switch Rope Guide
• Directs rope around limit switch
• Ball bearing
• Camlock nut included
• For rope up to Ø 8 mm
€27.80 / pc.
€33.08 incl. 19% VAT
TRAC-DRIVE G-FRAME 28 Control Cabinet
• For constant speed
• Functions: Open / Stop / Close
• 3 x 230 / 400 VAC - 50 Hz - other voltages available
• For direct cabling
• W x h x d: 444 x 220 x 290 mm
€2,788.30 / pc.
€3,318.08 incl. 19% VAT
TRAC-DRIVE G-FRAME 54 Control
• For constant speed
• Functions: Open / Stop / Close
• 3 x 230 / 400 VAC - 50 Hz - other voltages available
• For direct cabling
• W x h x d: 444 x 220 x 550 mm
€2,953.10 / pc.
€3,514.19 incl. 19% VAT
Control and Power Cable for fixed Speed
• Verbindungskabel zwischen Motor und Steuerung
from€185.40 / pc.
€220.63 incl. 19% VAT
TRAC-DRIVE Secondary Remote Control Panel
• Für Direktverkabelung
• B x H x T: 337 x 125 x 175 mm
• Ohne Zwischenposition
from€957.90 / pc.
€1,139.90 incl. 19% VAT
TRAC-DRIVE Optional Accessories for Control Unit 3 intermediate positions
• Optional: maximum 3 intermediate positions (additional incremental encoder required)
€973.40 / pc.
€1,158.35 incl. 19% VAT
Optional Accessories for Control Unit: DMX card
• DMX card with following functions: open/close
€700.40 / pc.
€833.48 incl. 19% VAT
Optional Accessories for Control Unit: DMX card
• DMX card with following functions: open/close and speed
€1,122.70 / pc.
€1,336.01 incl. 19% VAT
Optional Accessories for Control Unit: DMX card
• DMX card with following functions: open/stop/close/speed
• max. 3 intermed. positions
€1,452.30 / pc.
€1,728.24 incl. 19% VAT
TRAC-DRIVE G-FRAME 54 Control Cabinet
• For variable speed
• Functions: Open / Stop / Close Potentiometer
• 1 x 230 VAC - 50 Hz - other voltages available, direct cabling
• W x h x d: 444 x 220 x 550 mm
€3,849.20 / pc.
€4,580.55 incl. 19% VAT
Control and Power Cable for Variable Speed
• Verbindungskabel zwischen Motor und Steuerung
from€427.50 / pc.
€508.73 incl. 19% VAT
TRAC-DRIVE Additional Charge, Incremental encoder integrated
• Additional equipment Incremental encoder, mounted on motor
€1,246.30 / pc.
€1,483.10 incl. 19% VAT
TRUMPF 95 Return Pulley with Integral Incremental Encoder
• With integrated incremental encoder
• 500 pulses / rotation
€870.40 / pc.
€1,035.78 incl. 19% VAT
TRAC-DRIVE Additional charge Curtain Coupling Device
• Motor mount
• Disengages the curtain for manual operation
€1,823.10 / pc.
€2,169.49 incl. 19% VAT
TRAC-DRIVE Emergency Stop Button for DMX-control
length: 25,00 m, for TUBE,
MEGASCREEN TOUR and MEGASCREEN.
€252.40 / pc.
€300.36 incl. 19% VAT
TRAC-DRIVE Emergency Stop Button for DMX-control
STOP DMX function
length: 25,00 m, for TUBE,
MEGASCREEN TOUR and MEGASCREEN.
€164.80 / pc.
€196.11 incl. 19% VAT
Hand-Held Remote Control + Receiver
• Narrow band FM modulation
• Frequency: 433-434 MHz
• PLL synthesizer
• Without speed regulation
€1,122.70 / pc.
€1,336.01 incl. 19% VAT
Hand-Held Remote Control + Receiver with Emergency Stop Circuit
• Narrow band FM modulation
• Frequency: 433-434 MHz
• PLL synthesizer
• Without speed regulation
€2,451.40 / pc.
€2,917.17 incl. 19% VAT
