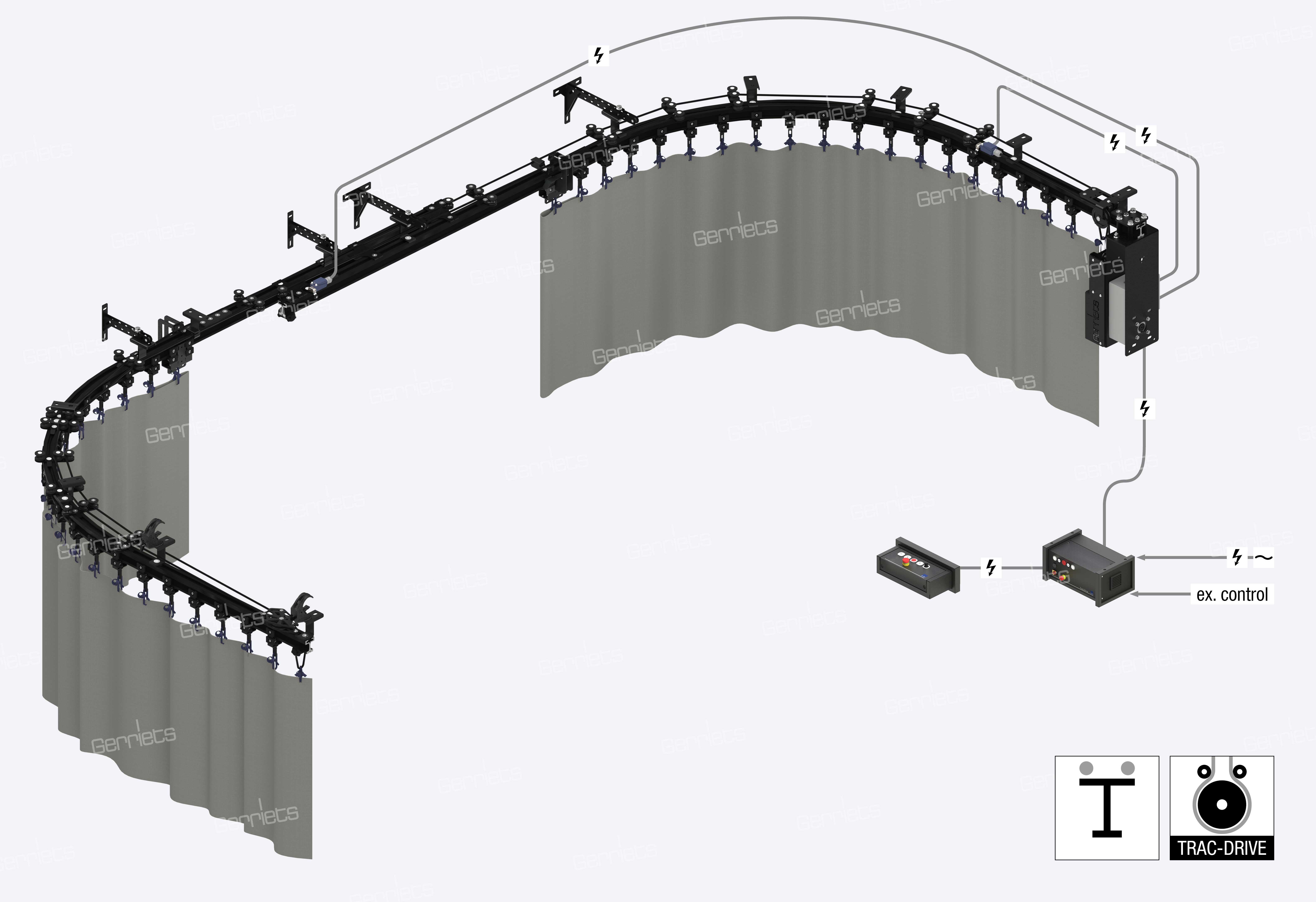

Zweiteilig Zweiläufig

Products

Heavy Duty Track Splice

Product number: 3125000063
pc.

Suspension Bracket

Product number: 3125008031
pc.

G-CLAMP 48/60 incl. fasteners for suspension mounting M12

Product number: 3100008091
pc.

2-Wheel Curtain Runner

Product number: 3125000021
pc.

Master Runner

Product number: 3125003011
pc.

Return Pulley

Product number: 3125000831
pc.

Head Pulley Block (downwards)

Product number: 3125000811
pc.

Cord Guide (straight track)

Product number: 3125003871
pc.

Cord Guide (curved track)

Product number: 3125003875
pc.

Polyester Pull Rope

Product number: 4104001182
rm

Limit Switch, Track Mounted

Product number: 3115007111
pc.

G-FRAME 28 Control Cabinet

Product number: 3180003012
pc.

Optional Accessories for Control Unit: DMX card

Product number: 3180009111
pc.

Hand-Held Remote Control + Receiver

Product number: 3180009911
pc.
31 Products

  1. JOKER 95 Track curved

    • I-shaped curtaintrack profile extruded of aluminium EN AW-6060 T66 for professional stage application

    • Integrated slot in upper cord for mounting of suspensions, elements for cord operation and accessories

    • Centering channels in upper and lower cord to receive roll pins for flush connection

    • 1/4 circle, 90° curve

    • Radius min. 200 cm

    from€479.00 / pc.
    €579.59incl. 21% VAT

  2. JOKER 95 Quick Connect Track Splice

    • To connect two track sections quickly and toolless

    • Works together with pre-milled track sections only

    • Quick connect track splice and milling included. Tracks to be calculated separately

    1. black
    €190.60 / pc.
    €230.63incl. 21% VAT

  3. JOKER 95 Heavy Duty Track Splice

    • For stressed track joints

    • To insert into the upper channel of straight track profiles to connecting two track sections

    • Including 2 roll pins for flush connection

    1. black
    €51.50 / pc.
    €62.32incl. 21% VAT

  4. JOKER 95 Joint Pins, Set of 10

    • Tapered cone for easy setup and fast disassembling of the tracks

    • Set consisting of 10 pins Ø 5,2 mm

    1. black
    €4.90 / pc.
    €5.93incl. 21% VAT

  5. JOKER 95 Connection Pins Touring Set of 10

    • Tapered cone for easy setup and fast disassembling of the tracks

    • Set consisting of 10 Stainless Steel pins Ø 5,2 mm

    1. silber
    €25.80 / pc.
    €31.22incl. 21% VAT

  6. JOKER 95 Heavy Duty End Stop

    • Individual arrangement along the track

    • With set screws for fixing

    1. black
    €34.00 / pc.
    €41.14incl. 21% VAT

  7. JOKER 95 Suspension Bracket

    • For top cord operation

    • With through hole Ø 12,5 mm for mounting to substructure or G-CLAMP 50/60 Art.-N°: 3100008091

    1. black
    €42.20 / pc.
    €51.06incl. 21% VAT

  8. JOKER 95 Center Overlap Bracket

    • For parallel conection of overlapping track sections

    • With through hole 12,5 mm for mounting to substructure or G-CLAMP 50/60 Art.-N°: 3100008091

    • Incl. fasteners and slot nuts

    1. black
    €36.10 / pc.
    €43.68incl. 21% VAT

  9. G-CLAMP 48/60 incl. fasteners for suspension mounting M12

    • Universal Smart-Clamp 48-60 mm diameter with anchor point for safety rope

    • Including fasteners for suspension mounting

    • Fluted contact surface for ideal purchase

    • Multilevel receiver for fasteners M10 and M12 (wrench size 17 & 19 mm)

    • Captive clamp screw

    • Premium powder coating RAL 9005 dull black

    • TÜV certified

    1. black
    €33.00 / pc.
    €39.93incl. 21% VAT

  10. JOKER 95 G-CLAMP 48/60

    • Universal Smart-Clamp for pipes with 48-60 mm diameter with anchor point for safety rope

    • Including fasteners and heavy duty slot nut for direct track mounting

    • Fluted contact surface for ideal purchase

    • Multilevel receiver for fasteners M10 and M12 (wrench size 17 & 19 mm)

    • Captive clamp screw

    • Premium powder coating RAL 9005 dull black

    • TÜV certified

    1. black
    €38.00 / pc.
    €45.98incl. 21% VAT

  11. Wall Mount Bracket

    • For suspension bracket mounting

    • Variable wall distance

    • Including fasteners for suspension bracket mounting

    from€56.00 / pc.
    €67.76incl. 21% VAT

  12. JOKER 95 2-Wheel Curtain Runner

    • Steel body with rubber bumps to reduce stowage noise

    • 2 ball raced stabilizing and 2 contact flanged wheels with high-performance plastics tire for minimized noise emission

    • Curtain mounting on 360°-plastics-swivel

    • Bunched length optimized to 40 mm in stowage

    1. black
    €30.90 / pc.
    €37.39incl. 21% VAT

  13. JOKER 95 Master Runner

    • Incl. cord mount for top cord operation

    • Steel body with rubber bumps to reduce stowage noise

    • 4 ball raced stabilizing and 4 contact flanged wheels with high-performance plastics tire for minimized noise emission

    • Curtain mounting on central receiver

    • Bunched length 127 mm in stowage

    1. black
    €185.40 / pc.
    €224.33incl. 21% VAT

  14. JOKER 95 Master Runner

    • Steel body with rubber bumps to reduce stowage noise

    • 4 ball raced stabilizing and 4 contact flanged wheels with high-performance plastics tire for minimized noise emission

    • Curtain mounting on central receiver

    • Bunched length 127 mm in stowage

    1. black
    €102.00 / pc.
    €123.42incl. 21% VAT

  15. JOKER 95 Return Pulley

    • For side and top cord operation

    • Returns cord at the end of the track

    • Ball raced pulleys for operating cord up to Ø 8 mm and cord keepers

    • Variable mounting along the track with camlock nut

    1. black
    €88.60 / pc.
    €107.21incl. 21% VAT

  16. JOKER 95 Return Pulley

    • For bottom cord operation

    • Returns cord at the end of the track

    • Ball raced pulleys for operating cord up to Ø 8 mm and cord keepers

    • Variable mounting along the track with camlock nut

    1. black
    €92.70 / pc.
    €112.17incl. 21% VAT

  17. JOKER 95 Head Pulley Block (downwards)

    • Diverts operating and returning cord downwards

    • Ball raced pulleys for operating cord up to Ø 8 mm and cord keepers

    • Individual arrangement along the track with sliding nuts

    • Incl. fasteners and slot nuts

    1. black
    €144.20 / pc.
    €174.48incl. 21% VAT

  18. JOKER 95 Cord Guide

    • For bottom cord operation

    • Guides returning cord on straight tracks

    • For operating cord up to Ø 8 mm

    • Individual arrangement along the track with a sliding nut

    • Incl. fasteners

    1. black
    €38.10 / pc.
    €46.10incl. 21% VAT

  19. JOKER 95 Cord Guide (straight track)

    • For top cord operation

    • Guides operating and returning cord on straight tracks

    • Ball raced pulleys for operating cord up to Ø 8 mm

    • Individual arrangement along the track with a sliding nut

    • Incl. fasteners

    1. black
    €30.90 / pc.
    €37.39incl. 21% VAT

  20. JOKER 95 Cord Guide (curved track)

    • For top cord operation

    • Guides operating and returning cord on curved tracks

    • Ball raced pulleys for operating cord up to Ø 8 mm

    • Individual arrangement along the track with a sliding nut

    • Incl. fasteners

    1. black
    €76.20 / pc.
    €92.20incl. 21% VAT

  21. HAND-DRIVE

    • Cable drive with integrated cable tensioning device and guided double spring

    • Serviceable housing for easy installation and maintenance

    • Central axis marking as a positioning aid, perpendicular to the rail direction

    • Slotted holes for simple mounting and alignment

    • Crank position adjustable without tools via star grip, with two lever settings: short lever arm = fast; long lever arm = powerful

    • The crank equipped with a folding handle can also be locked in both positions (lock not included)

    • “OPEN / CLOSE” label supplied separately for individual marking of the rotation direction

    1. black
    €675.00 / pc.
    €816.75incl. 21% VAT

  22. Stirrup Floor Pulley with foot stirrup

    • With foot stirrup and Ø 10 mm hole

    • Tensioned by foot pressure

    • For rope up to Ø 8 mm

    1. black
    €97.90 / pc.
    €118.46incl. 21% VAT

  23. Floor Pulley for Weighting Sandback

    • With receiving hole Ø 8,5 mm

    • Rope tension with the aid of the sandsack (not included in scope of delivery)

    • For rope up to Ø 8 mm

    • Including quick link DIN 56927-B NG6

    1. black
    €84.50 / pc.
    €102.25incl. 21% VAT

  24. Polyester Pull Rope

    • 100 % polyester
    • black
    • Ø 8,00 mm, tensile strength approx. 1.150 daN.
    1. black
    €2.80 / rm
    €3.39incl. 21% VAT

  25. TRAC-DRIVE TD12

    • 2-grooved pulley, direct cabling

    • 40 % duty cycle

    • 3 x 230 / 400 VAC - other voltages available

    €3,162.10 / pc.
    €3,826.14incl. 21% VAT

  26. TRUMPF 95 TRAC-DRIVE Mounting Bracket

    • For direct track mounting

    • For TD12 and TD30

    1. black
    €52.50 / pc.
    €63.53incl. 21% VAT

  27. TRUMPF 95 Limit Switch, Track Mounted

    • With track mounting plate

    • Camlock nut included

    • Without cable

    1. black
    €67.00 / pc.
    €81.07incl. 21% VAT

  28. TRAC-DRIVE G-FRAME 28 Control Cabinet

    • For constant speed

    • Functions: Open / Stop / Close

    • 3 x 230 / 400 VAC - 50 Hz - other voltages available

    • For direct cabling

    • Including accessories for 19" rack or wall mounting

    • W x h x d: 444 x 220 x 290 mm

    1. black
    €2,788.30 / pc.
    €3,373.84incl. 21% VAT

  29. TRAC-DRIVE Secondary Remote Control Panel

    • For direct cabling

    • W x H x D: 337 x 125 x 175 mm

    • No intermediate position

    from€957.90 / pc.
    €1,159.06incl. 21% VAT

  30. Optional Accessories for Control Unit: DMX card

    • DMX card with following functions: open/close

    €700.40 / pc.
    €847.48incl. 21% VAT

  31. Hand-Held Remote Control + Receiver

    • Narrow band FM modulation

    • Frequency: 433-434 MHz

    • PLL synthesizer

    • Without speed regulation

    1. black/yellow
    €1,122.70 / pc.
    €1,358.47incl. 21% VAT
